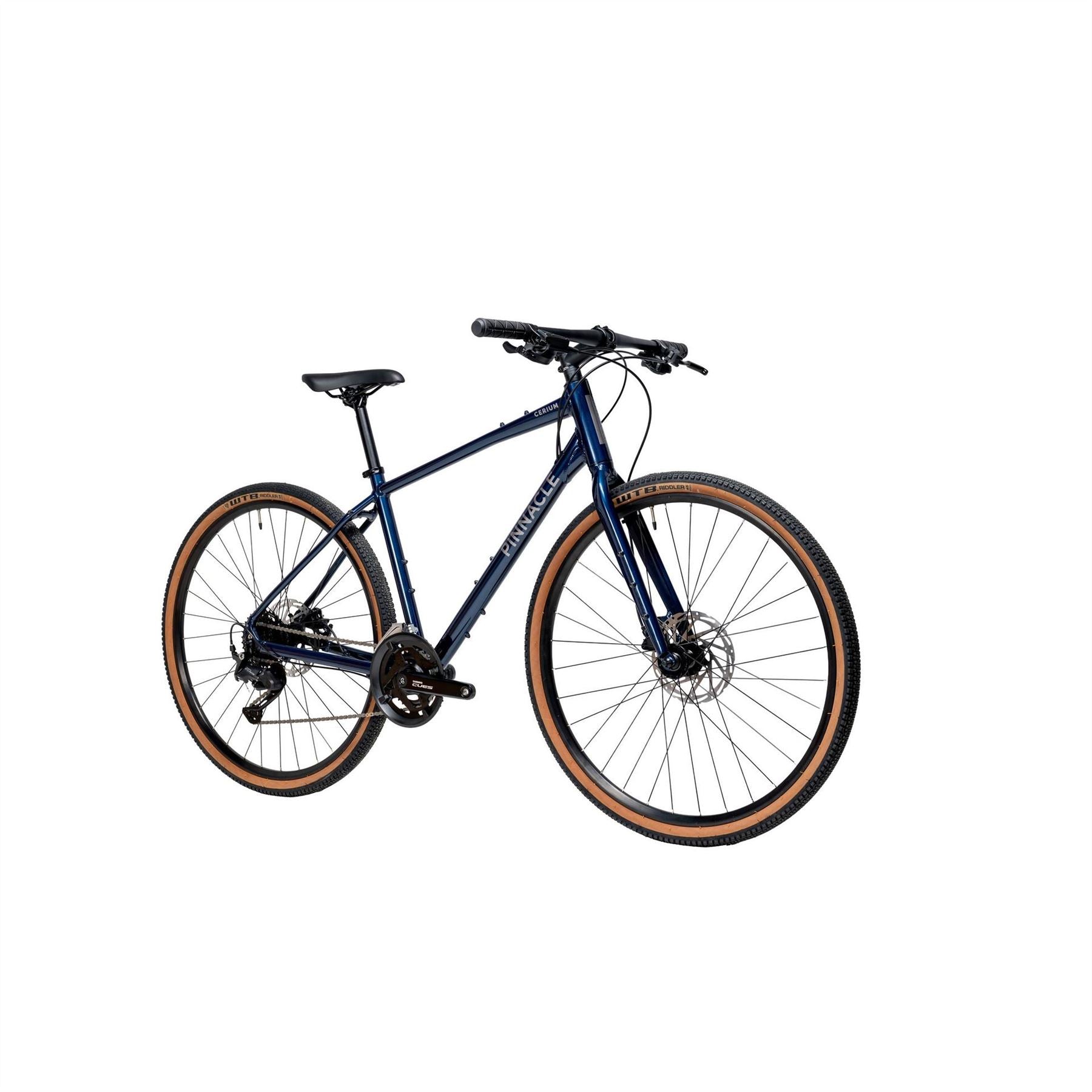

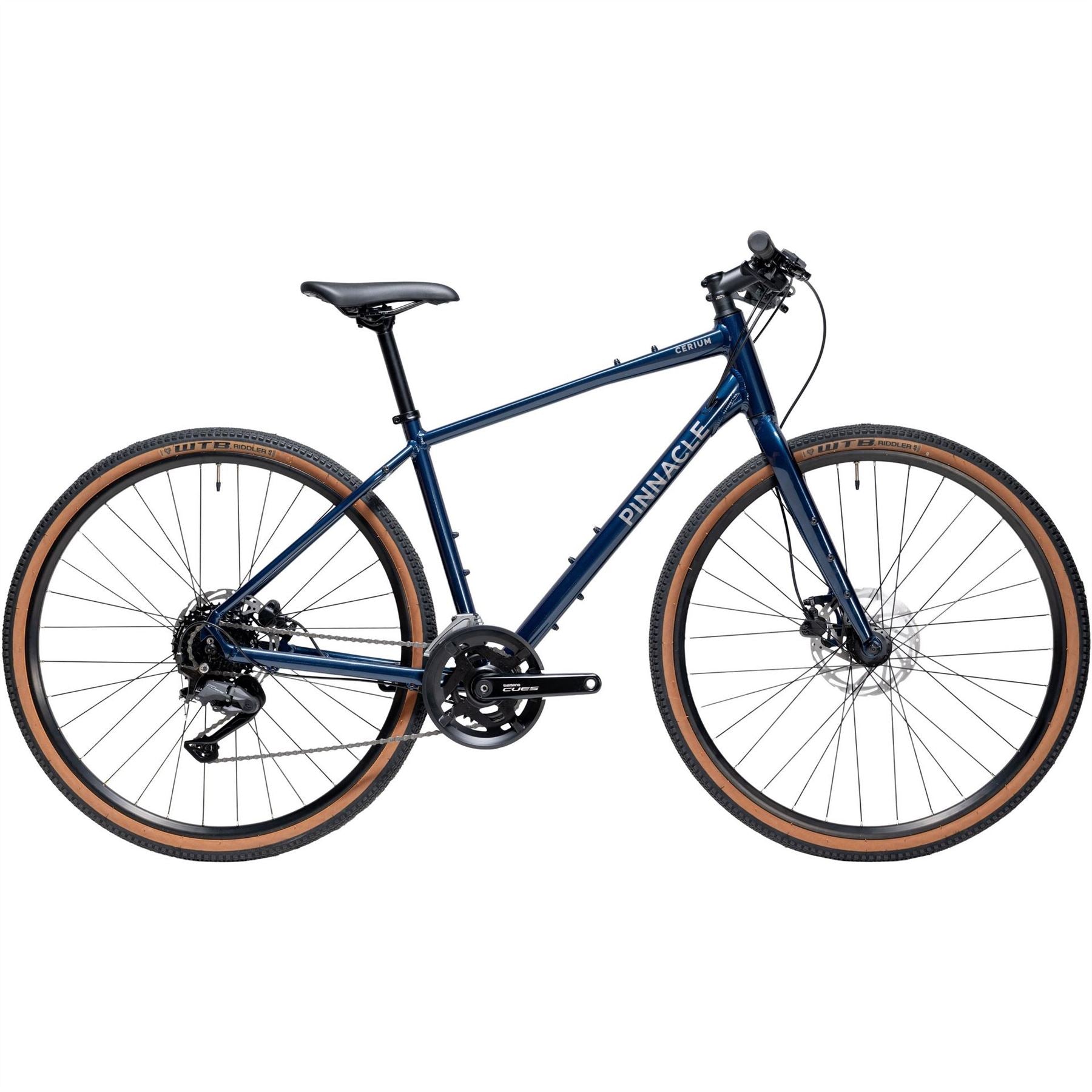

Pinnacle Cerium Flat Bar Hybrid Bike

Mixed terrain commute, flat bar gravel riding, path and road mixed leisure and fitness riding. All of the above? The Cerium flat-bar has you covered. It is equal parts hybrid bike with go-anywhere big tires, and a flat bar adventure-gravel bike. You choose how you want to ride it.

For someone wanting all the versatility of an adventure-gravel bike but with flat (rather than drop) handle handlebars. For the ridier looking for the extra grip and bump absorbing comfort that comes from 700x45c tires, and the extra stopping power of hydraulic disc brakes

Key Features

• 6061 Alloy frame with internal cable routing, mud guard and rack mounts.
• Shimano Cues 2x9 speed drivetrain.
• Tektro HD-M280 hydraulic disc brakes.
• WTB Riddler 700x45c tires.

Specifications

Frameset

• Frame: 6061 alloy, internal cable routing, mud guard mounts, rack mounts.
• Fork: Steel fork, mud guard mounts, QR.
• Rear Shock: N/A

Wheels

• Rims: 700c alloy double wall, presta valve.
• Hubs: Joytec, D761/2, alloy, disc brake, 6 bolt, 32h, F: 100mm QR, R: 135mm QR
• Tyres: WTB Riddler, 700x45c, tan wall, wire bead, 30tpi.

Drivetrain

• Crankset: Shimano Cues, 46x30.
• Shifters: Shimano Cues, 2x9 speed.
• Rear Derailleur: Shimano Cues, U3020, 9 speed, shadow.
• Front Derailleur: Shimano Cues, U4010.
• Chain: KMC, Eglide.
• Cassette: Shimano, LG300, 9 speed, 11-36t, 11-13-15-17-20-23-26-30-36t.
• Bottom Bracket: Shimano.

Components

• Handlebar: Alloy, 31.8mm, 6 deg, 720mm.
• Stem: Alloy, 31.8mm, 7deg, S: 60mm, M-XL: 90mm.
• Grips: Velo, black, 128mm, end plugs
• Brakes: Tektro, HD-M280, hydraulic disc, 180mm rotor, 6 bolt.
• Saddle: Black, steel rail.
• Seatpost: Alloy, 27.2 x 350mm, 15mm offset.

Cerium Flat Bar Sizing
