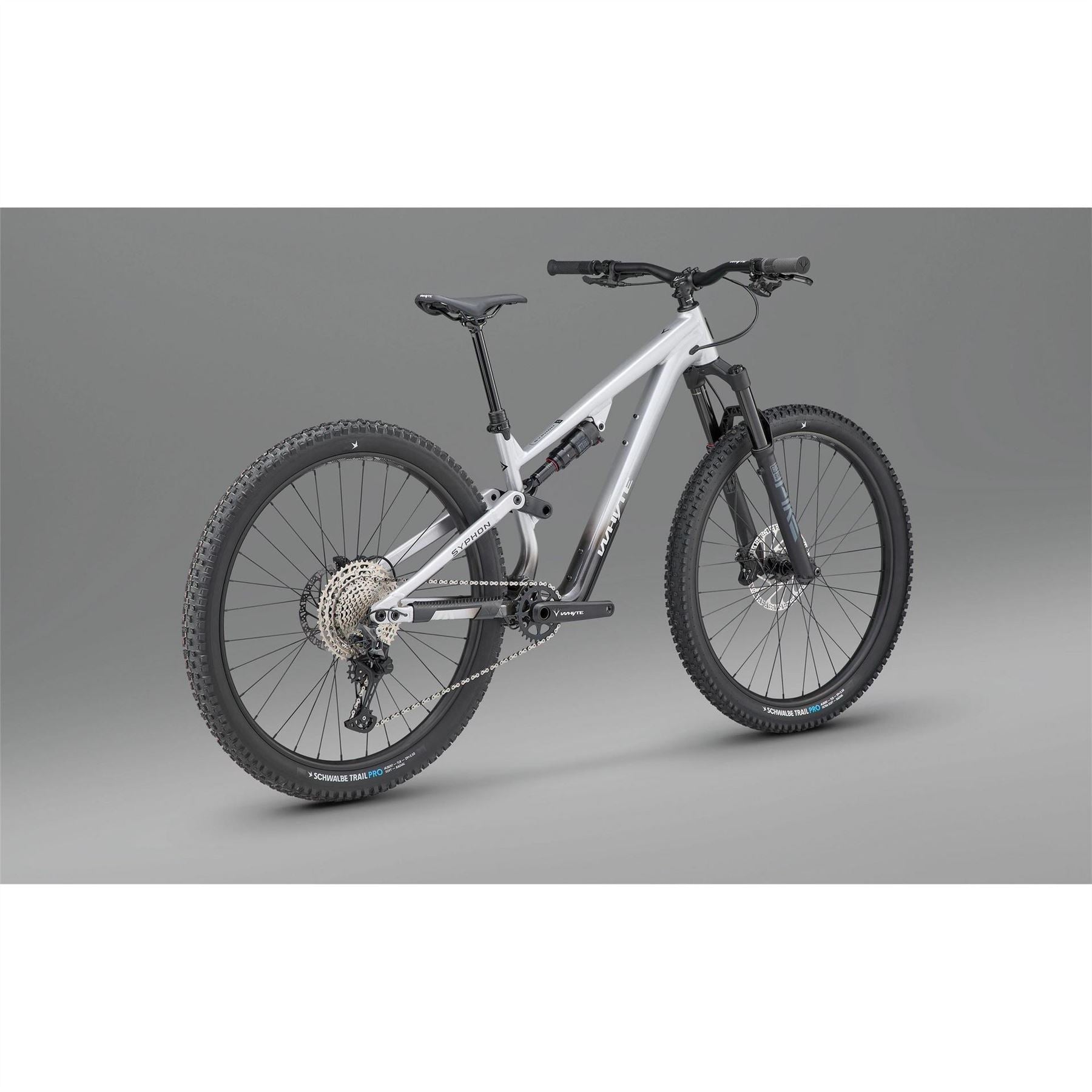

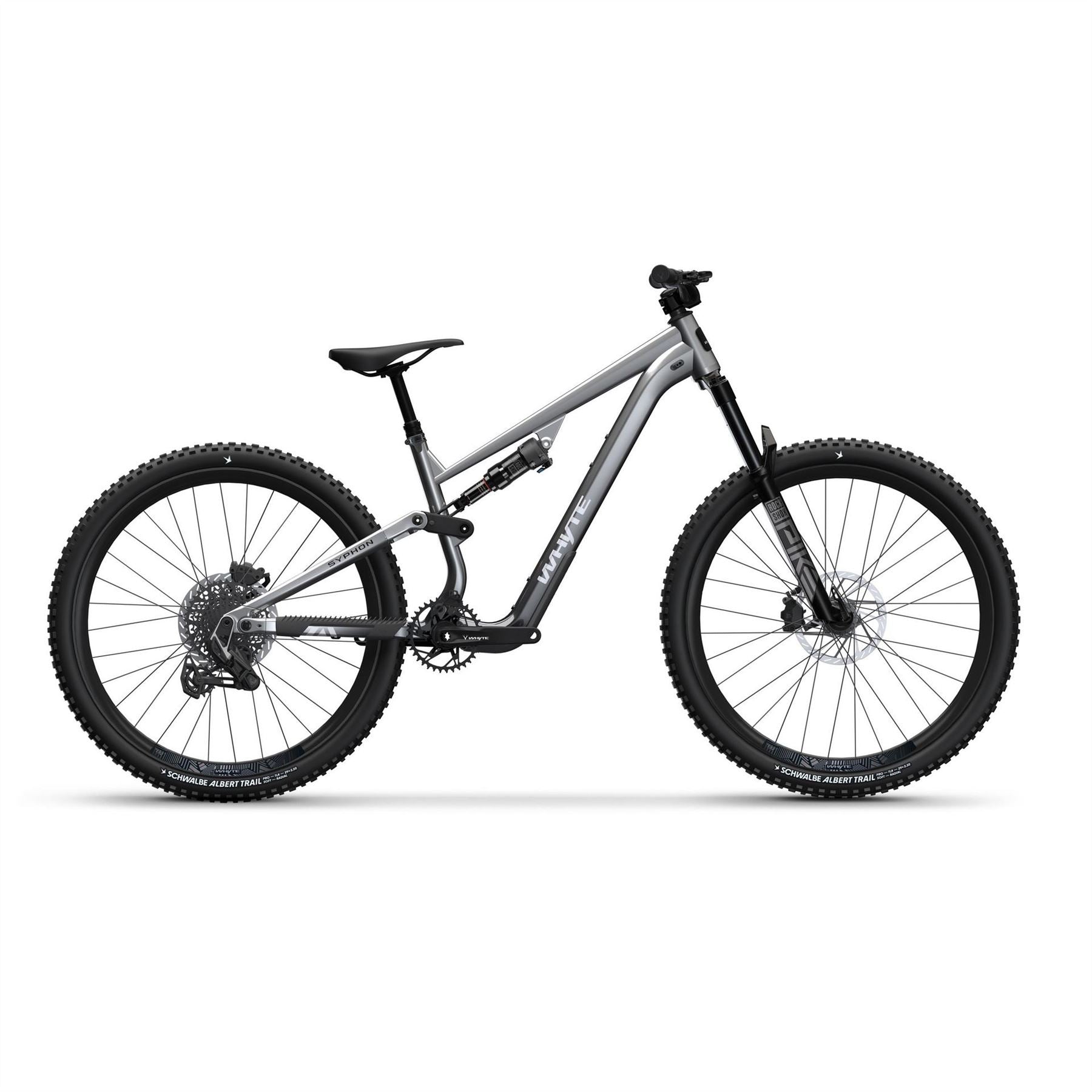

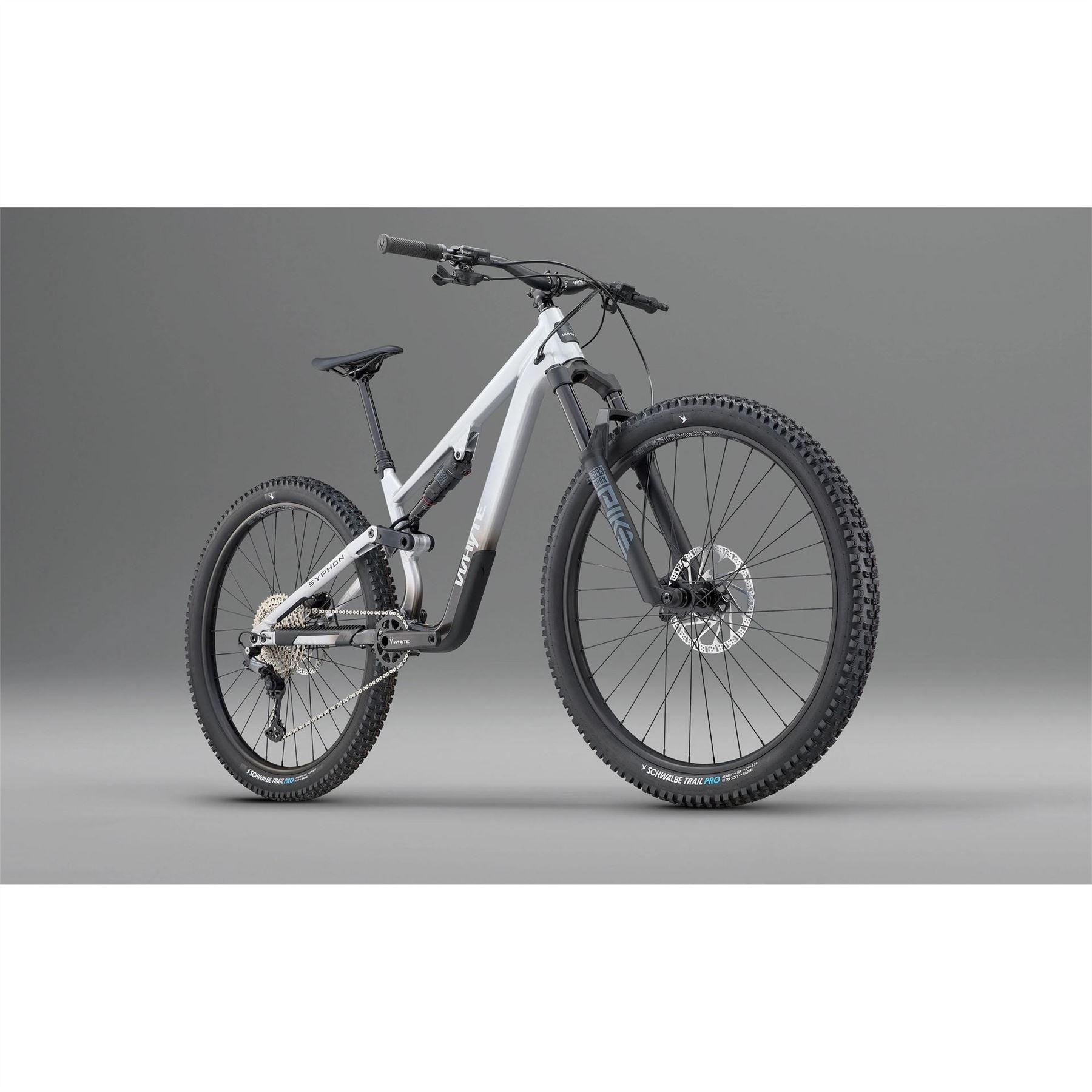

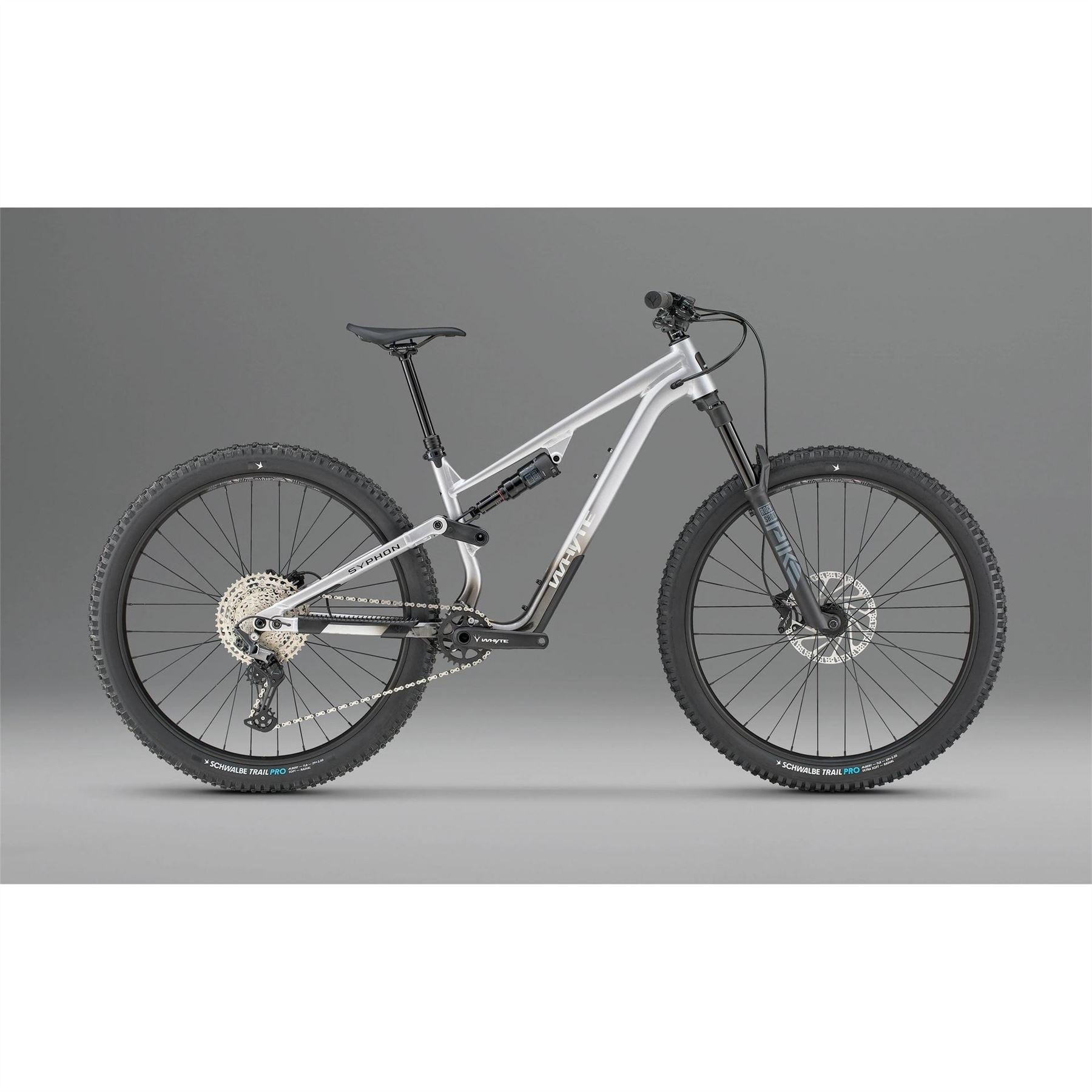

Whyte S 2027 Mountain Bike

The Whyte Syphon S is a confidence-inspiring full suspension trail bike built to help you ride better across everything from flowing singletrack to technical descents and all-day mountain adventures. Its 6061 hydroformed alloy frame is paired with Whyte's Quad-Link 4 suspension platform, delivering 140mm of front travel and 135mm at the rear for an excellent balance of climbing efficiency, grip and descending capability. Progressive, proportionally sized geometry ensures every rider benefits from balanced handling, while the Shape.It Link flip chip allows the geometry to be adjusted to suit different trails and riding styles.

RockShox suspension keeps the ride composed over rough terrain, while Shimano's proven Deore 1x12 drivetrain provides reliable shifting across a wide gear range. Powerful TRP EVO Comp four-piston hydraulic disc brakes inspire confidence on steep descents, and Schwalbe Albert Radial tyres deliver impressive grip in all conditions.

---

Key Features

• 6061 hydroformed alloy frame with Quad-Link 4 suspension and Shape.It Link geometry adjustment
• RockShox Pike Base fork with 140mm travel and RockShox Deluxe Select RT rear shock with 135mm travel
• Shimano Deore 1x12 drivetrain with 11-51T cassette
• TRP EVO Comp four-piston hydraulic disc brakes with 203mm front and 180mm rear rotors
• Tubeless-ready Whyte Trail wheelset with Schwalbe Albert Radial tyres

---

Specifications

Frameset

• Frame: 6061 Alloy, SCR Aluminium Front Triangle with tapered head tube
• Fork: RockShox Pike Base 29in, 140mm travel, 44mm offset, DebonAir+
• Shock: RockShox Deluxe Select RT, DebonAir

Wheelset

• Rims: Whyte Trail, pinned joint, tubeless ready, 32 hole, 30mm internal width, 29in front and rear (M-XL), 29in front / 27.5in rear (S)
• Front hub: Centre Lock, 15x110mm Boost thru axle, 31mm Torque Caps, 32 hole
• Rear hub: 12x148mm Boost thru axle, MicroSpline freehub, 32 hole

Tyres

• Front tyre: Schwalbe Albert Trail Radial 29 x 2.5in Trail casing, Super Soft
• Rear tyre: Schwalbe Albert Radial 29 x 2.5in (M-XL) / 27.5 x 2.5in Trail casing, Soft (S)

Drivetrain

• Rear derailleur: Shimano Deore M6100 SGS, Shadow Plus, 12-speed
• Shifters: Shimano Deore M6100, I-Spec EV, 12-speed
• Bottom bracket: BSA, cartridge bearings, 73mm

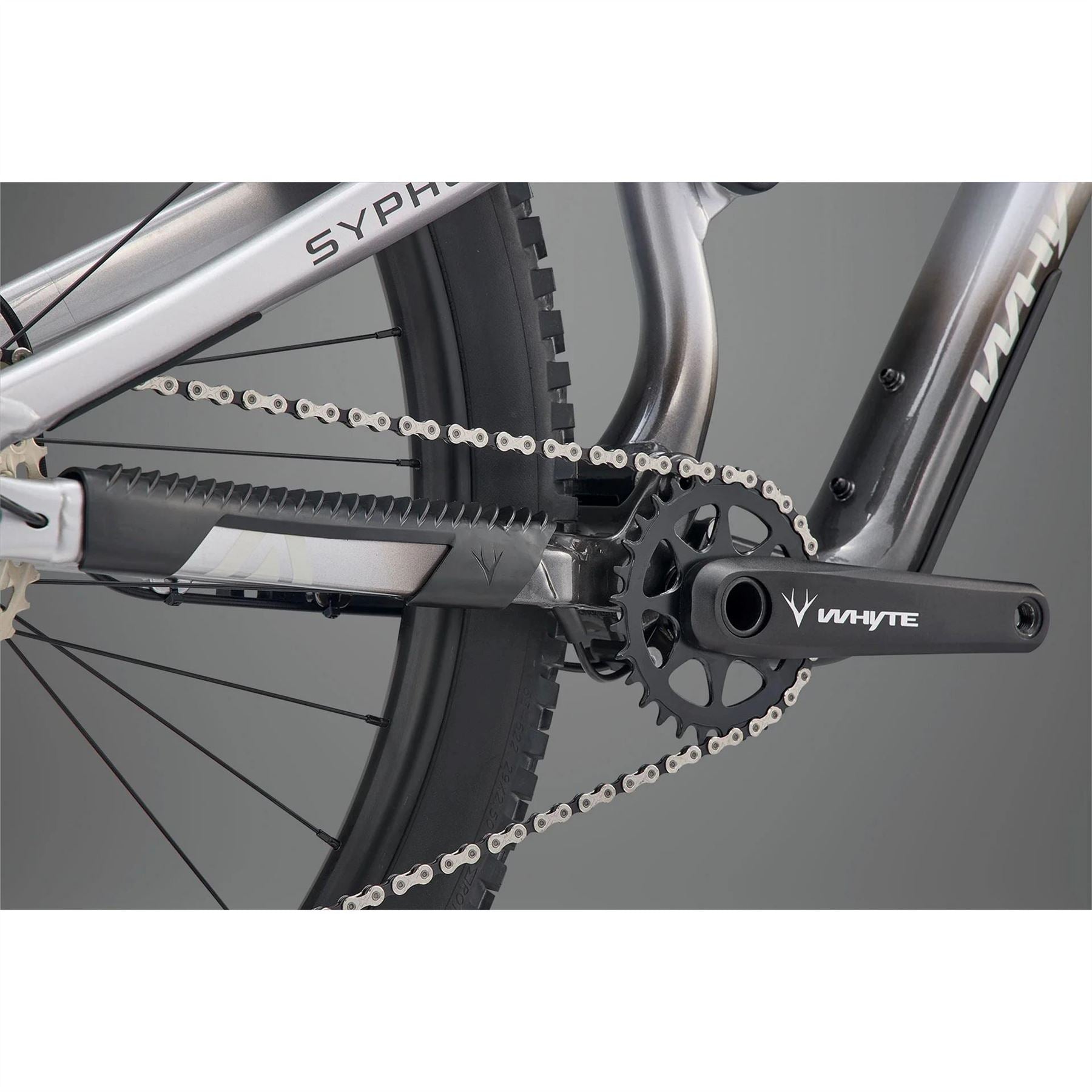

• Crankset: Whyte forged two-piece, direct mount alloy 30T narrow-wide chainring, Boost, 12-speed
• Cassette: Shimano CSM6100, 11-51T, 12-speed
• Chain: KMC X12, 12-speed
• Number of gears: 12

Brakes

• Front brake: TRP EVO Comp hydraulic disc brake, four-piston, 203mm rotor

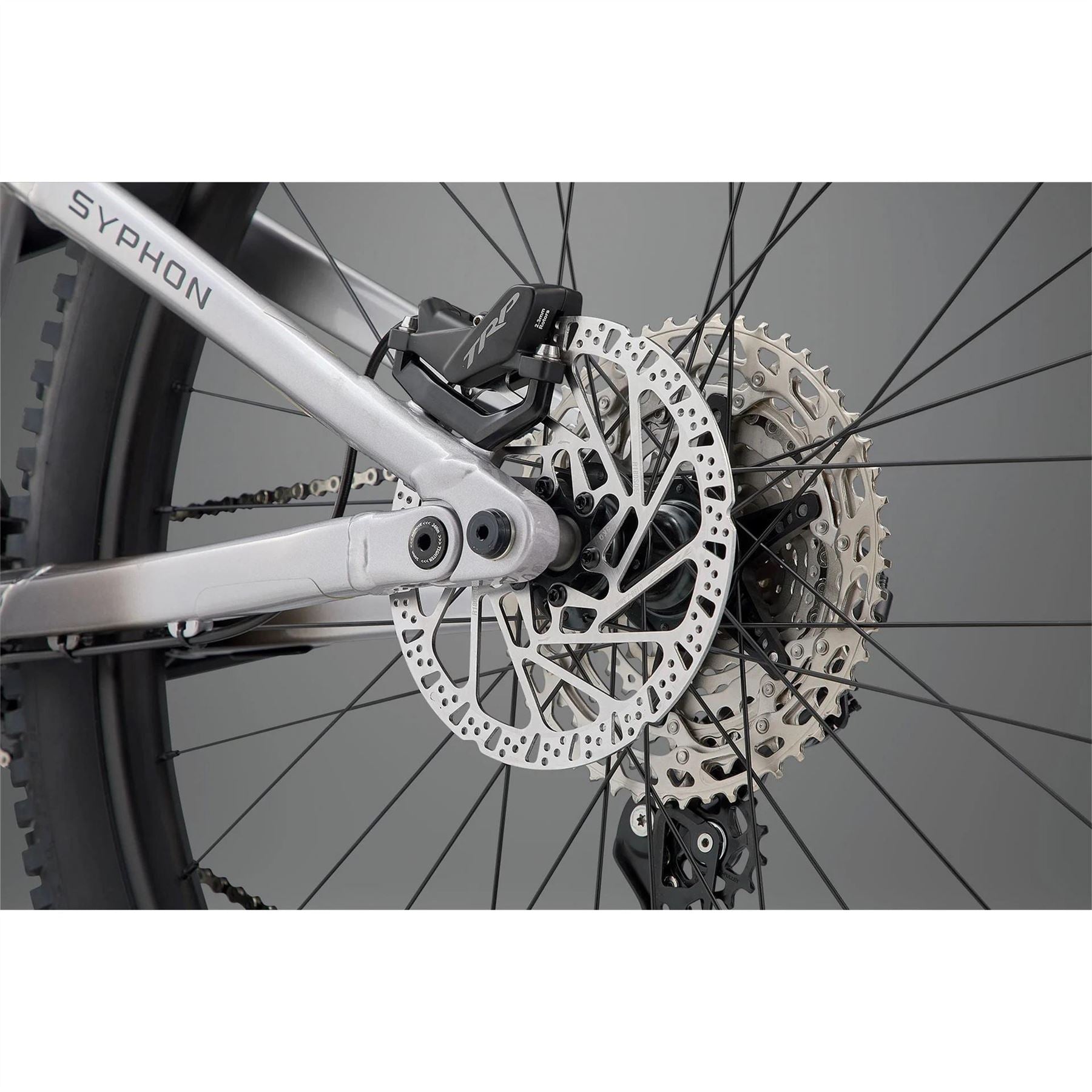

• Rear brake: TRP EVO Comp hydraulic disc brake, four-piston, 180mm rotor

Finishing Kit

• Stem: Whyte Gravity, 35mm extension, 31.8mm bar bore
• Handlebar: Whyte 6061 alloy, 31.8mm bar bore, 30mm rise, 780mm wide
• Grips: Whyte Lock-on Enduro Grip
• Saddle: Whyte Custom
• Seatpost: TranzX dropper post, 30.9mm, size-specific drop (S: 150mm, M-XL: 170mm)
• Pedals: Fibre reinforced composite platform

---

Whyte Syphon Sizing

	S	M	L	XL
Rider Height (cm)	160 - 168	168 - 178	178 - 188	188 - 198
Rider Height (ft)	5'3 - 5'6	5'6 - 5'10	5'10 - 6'2	6'2 - 6'6
