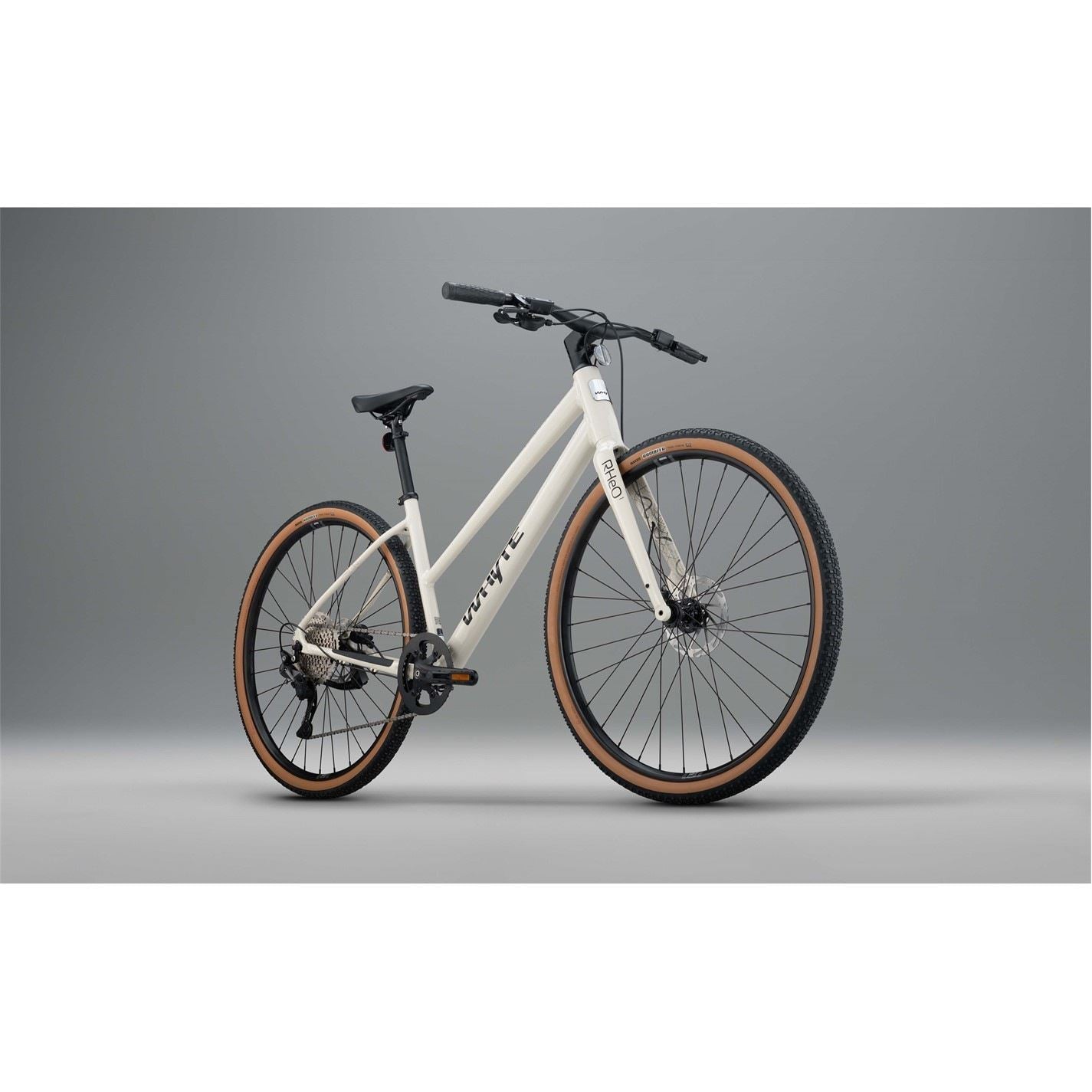

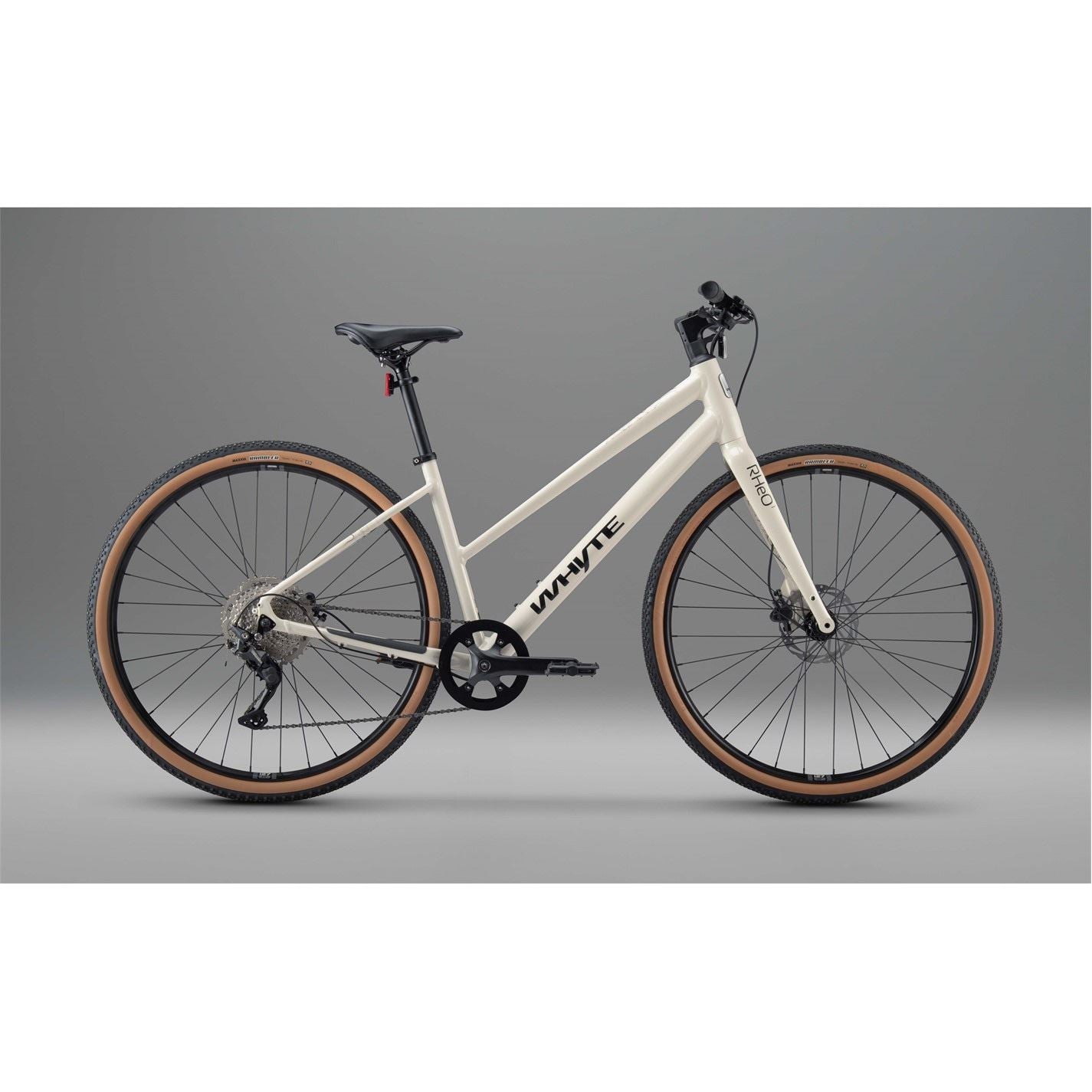

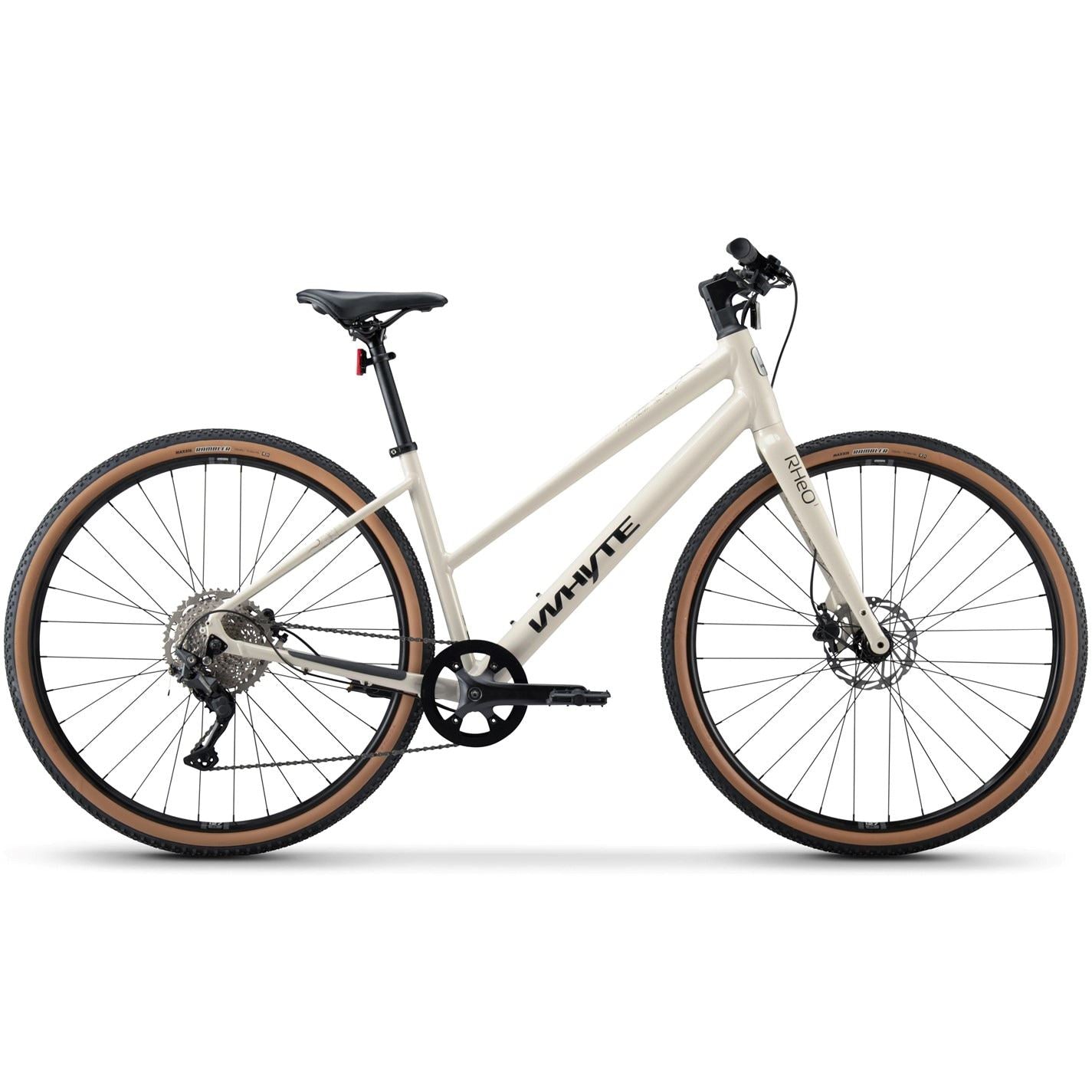

Whyte Rheo 1 Step Through Hybrid Bike

Light, comfortable and fast

Combining efficiently smooth riding with real-world capability and dependability, RHeO 1 ST (step-through) is your perfect partner for comfortably and confidently flowing freely along the streets and bike paths.

Highlights

Lightweight aluminium frame and fork for easy pedalling and carrying.

Mid-step step-through frame is perfect for riders 152–173cm (5'0–5'9)

Smooths out the rough

Whether café cruising, commuting, socialising or simply exploring the roads, lanes and bike paths less travelled, RHeO 1's confident handling and road-smoothing high-volume tyres will put you in control, everywhere. Weighing just 12kg (size M) it's easy to lift and live with too.

Whyte Classification: 2 - Cross

Whyte bikes and ebikes of this classification have been designed to be ridden on roads, tarred cycle lanes, or gravel/earthy surfaces that have been sign posted for bikes. This category of bike is intended for leisure and trekking where loss of contact between the wheels and surface may occur. Drops must be limited to 15cm (6in) or less. Maximum permissible weight consisting of the rider and luggage is specified on the CE marking on your bike.

Specifications

Frameset

• Frame: 6061 alloy, hydroformed T6 aluminium, multi-butted, tapered head tube, internal cable routing and custom Whyte dropouts, chain stay kick stand mount
• Fork: Whyte straight bladed 6061 alloy, alloy tapered steerer, internal cable routing, 12mm thru-axle, Post Mount with single eyelets for mudguards
• Headset: No. 69 SRS, 1-1/8in upper and 1.5in lower with sealed cartridge bearings and front entry for cables

Wheels

• Rear Hub: Alloy, cup and cone, double sealed cartridge bearings, 32 hole
• Front Hub: Alloy, double sealed cartridge bearings, 12mm x 100mm thru-axle, 32 hole
• Rims: WTB STp I27 rims, 32 hole
• Tyre: Maxxis Reaver Tanwall 700 x 45c, EXO wire bead
• Spokes: 2.0mm, PG, black stainless, brass nipples

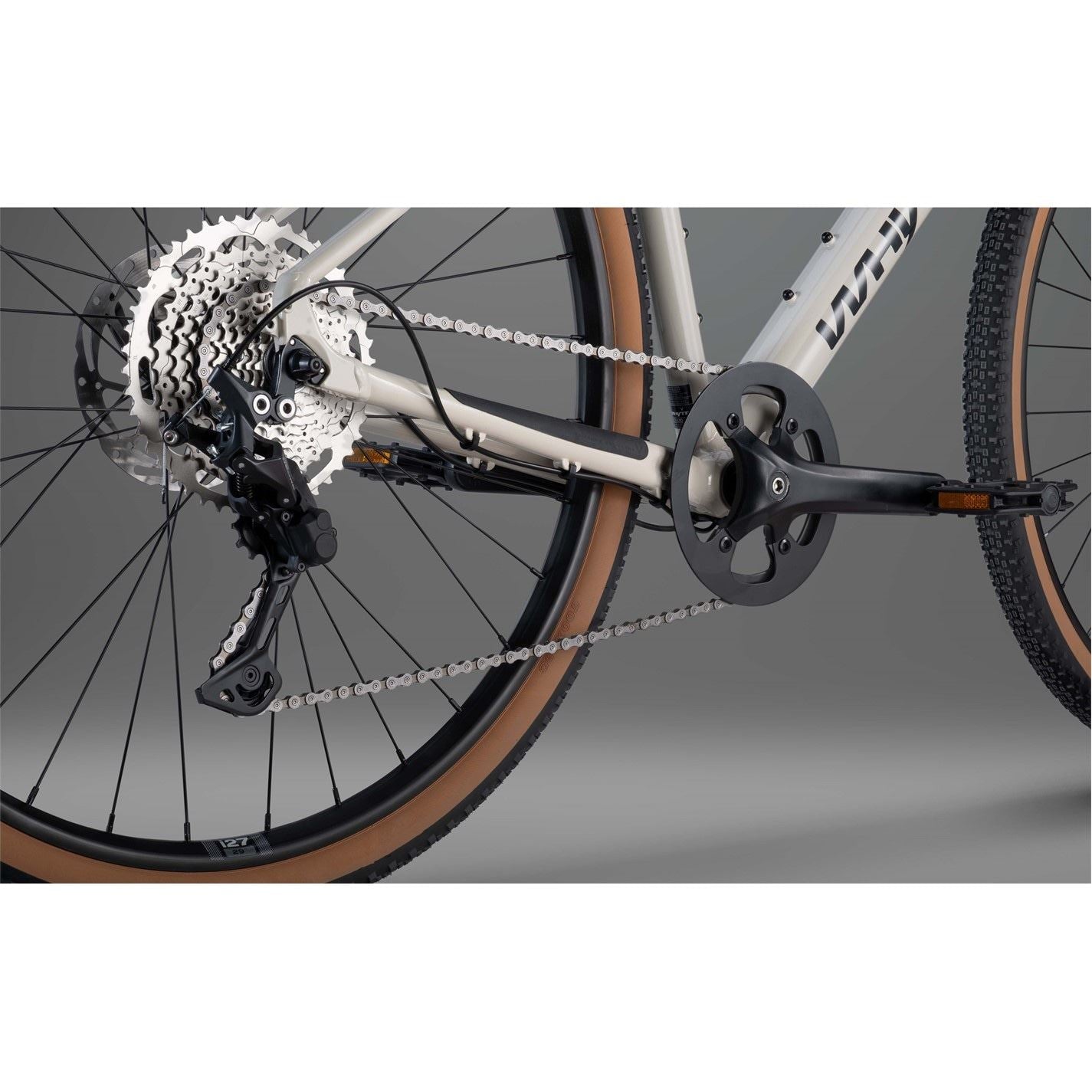

Drivetrain

• Crankset: Whyte alloy, 40T alloy chainring
• Bottom bracket: Shimano BSA, square taper, 122.5mm
• Rear Mech: Shimano Deore 10 speed, Shadow design and direct attachment
• Shift Levers: Shimano Deore 10 speed Rapidfire
• Cassette: Shimano Deore 10 speed, 11-46T
• Chain: Shimano Deore 10 speed

Components

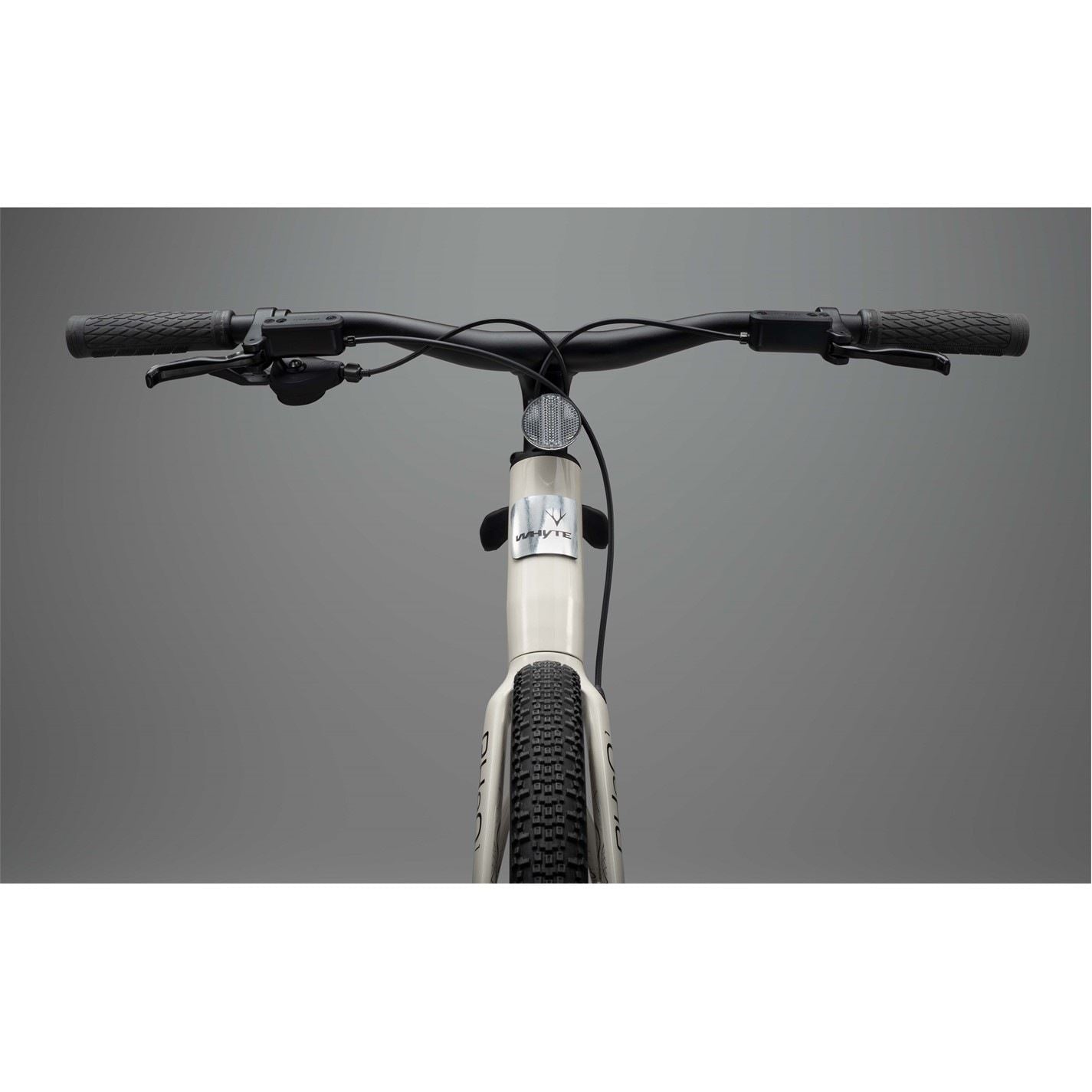

• Handlebar: Whyte one piece bar and stem: 50mm extension, 720mm width, 20mm rise, seven degree backsweep, four degree upsweep
• Grips: Whyte Custom dual density lock-on

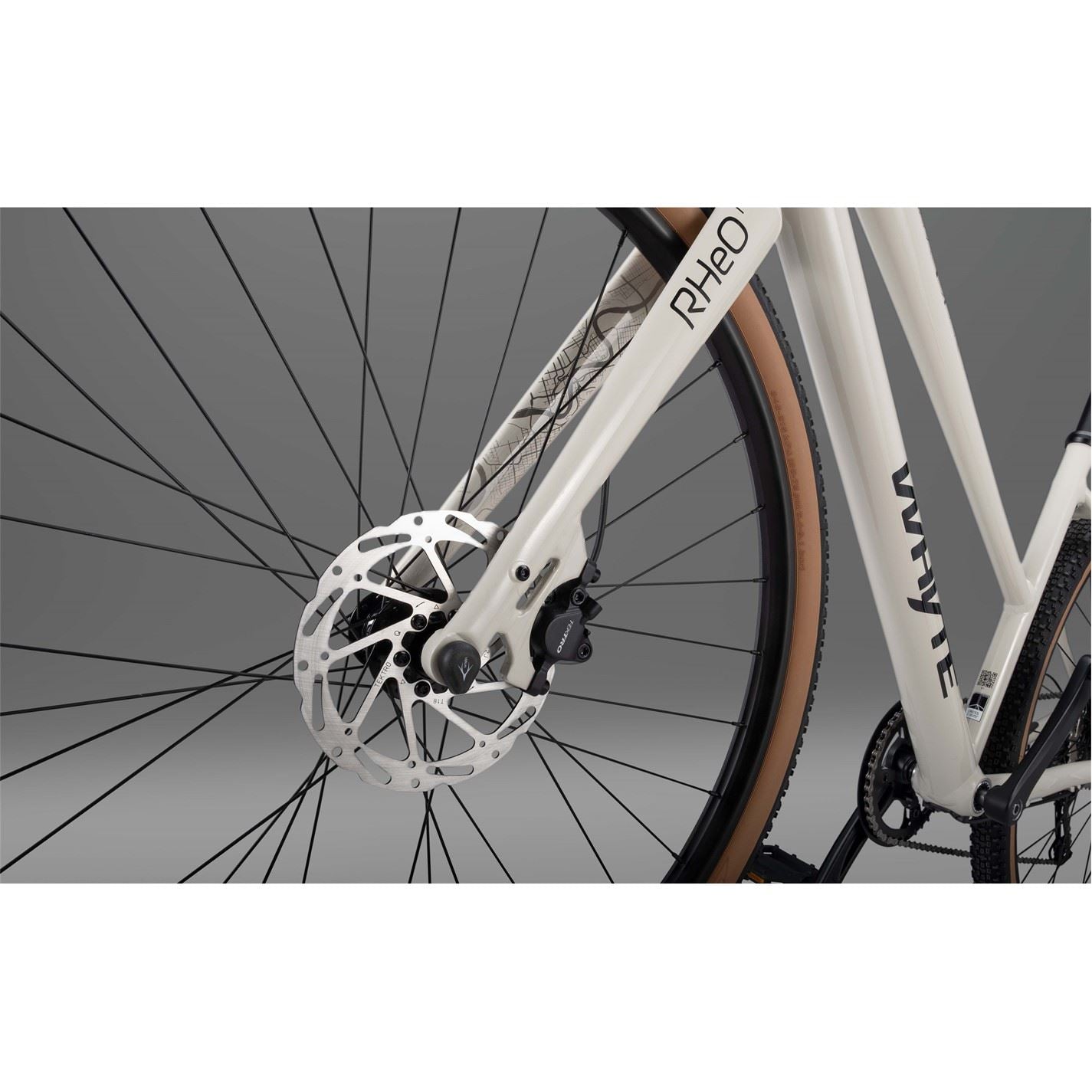

• Brakes front: Tektro T3020 hydraulic, 1.8mm thick 180mm diameter disc rotor
• Brakes rear: Tektro T3020 hydraulic, 1.8mm thick 180mm diameter disc rotor
• Brake levers: Tektro T3020 Clean Sweep Design, three finger comfort lever
• Saddle: Whyte Custom
• Seatpost: Whyte 6061 alloy, 20mm offset, 350mm, two bolt clamp
• Pedals: Fibre reinforced composite platform
• Weight: 12kg

---

Bike Sizing

	XS	S	M
Rider Height	5'0 - 5'2 / 152cm - 157cm	5'2 - 5'6 / 157cm - 168cm	5'6 - 5'9 / 168cm - 175cm
