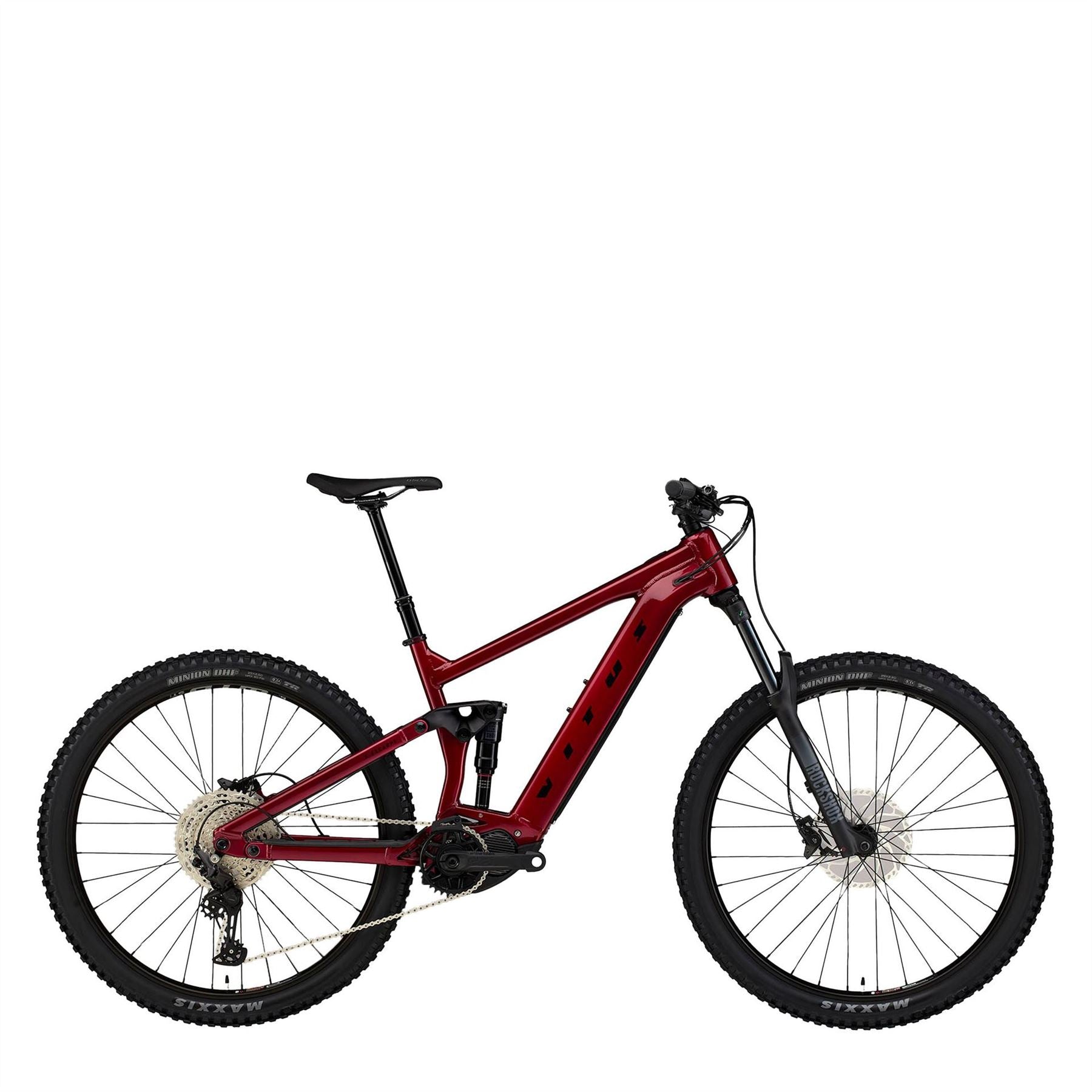

Vitus E Escarpe Full Suspension Trail Ebike

Vitus E Escarpe Full Suspension Trail Ebike

£2,499.00
£2,499.00 £3,999.00
Save 38% Sold out
Tax included.
Can only be shipped to the UK.
Low stock
Size: S
Colour: Red

SKU: L1000000030925873731102350

Description

The E-Escarpe is an all-mountain eMTB designed for singletrack, after-work laps, and for those looking for a pedal-assist alternative to a standard trail bike. Its balanced geometry is a blast uphill and down, and its Shimano EP801 drive system is intuitive and can be tuned to suit the way you ride.

It’s an eMTB for the rider who wants a nimble and responsive e-bike; a bike that’s a little less of an e-enduro brawler and instead a little more versatile and responsive.

Closely based on our award-winning Escarpe trail bike, the E-Escarpe is powered by the Shimano EP801 drive unit and a 630Wh battery. This motor system makes 85Nm of climb-eating torque and peaks at 600w of power — a capable tool in an all-mountain setting.

Our goal was to make an eMTB that handled exactly like the rock-solid Escarpe trail bike, which is exactly where our designers landed. We began development on the E-Escarpe by starting with the original Escarpe frame and making small tweaks to make room for the EP801 drive system and adjusting the geometry for eMTB use. The result is an e-bike chassis that’s efficient on climbs and an absolute blast on descents; flickable enough to rail switchbacks and blitz rock gardens while still placing emphasis on uphill efficiency. It’s what we at Vitus envision as the ideal all-day, do-anything, ride-anywhere eMTB.

Spec may differ slightly to the images, spec details below.

Key Features

  • RockShox Reckon Silver RL & Deluxe Select suspension
  • Efficient Shimano EP801 motor with 630Wh internal battery
  • Shimano Deore 1x12 speed drivetrain
  • Shimano MT401 hydraulic disc brakes
  • Confidence inspiring Maxxis Minion DHF/DHR II tyres

Specifications

Frameset

  • Frame: E-Escarpe 6061-T6 Double Butted Alloy
  • Fork: RECON SILVER RL, 29, 15X110, 1.5 Steerer
  • Rear Shock: RockShox Deluxe Select 205X60, C30 TS C2

Wheels

  • Rims: WTB ST i30 TCS 2.0 29, 32h
  • Tyres: Maxxis Minion DHF/DHR II - 29 x 2.5/2.4, EXO, TR

Drivetrain

  • Shifters: Shimano Deore M6100 - 12 Speed, Rapidfire Plus
  • Rear Derailleur: Shimano Deore M6200 - 12 Speed, Shadow Plus, Long Cage.
  • Chain: KMC X12
  • Front Derailleur: N/A

Components

  • Handlebar: 780mm, BACKSWEEP:9 UPSWEEP:5 RISE:, DIA:31.8
  • Stem: L: 40mm, 5°, DIA:31.8
  • Grips: 141mm, Black
  • Brakes: Shimano MT401
  • Saddle: Black
  • Seatpost: Tranz-x. travel:170

E-System

  • Motor: Shimano STEPS EP801 - Power Output 250W, Max Torque 85Nm
  • Battery: Shimano BT-EN806-A - 630Wh, Downtube Integrated
  • Cycle computer: Shimano SC-EN600

Vitus E-Escarpe Sizing

S M L XL
Rider Height (cm) 160 - 170 170 - 178 178 - 190 190 - 201
Inside Leg (cm) 71 - 76 76 - 81 81 - 86 86 - 94
