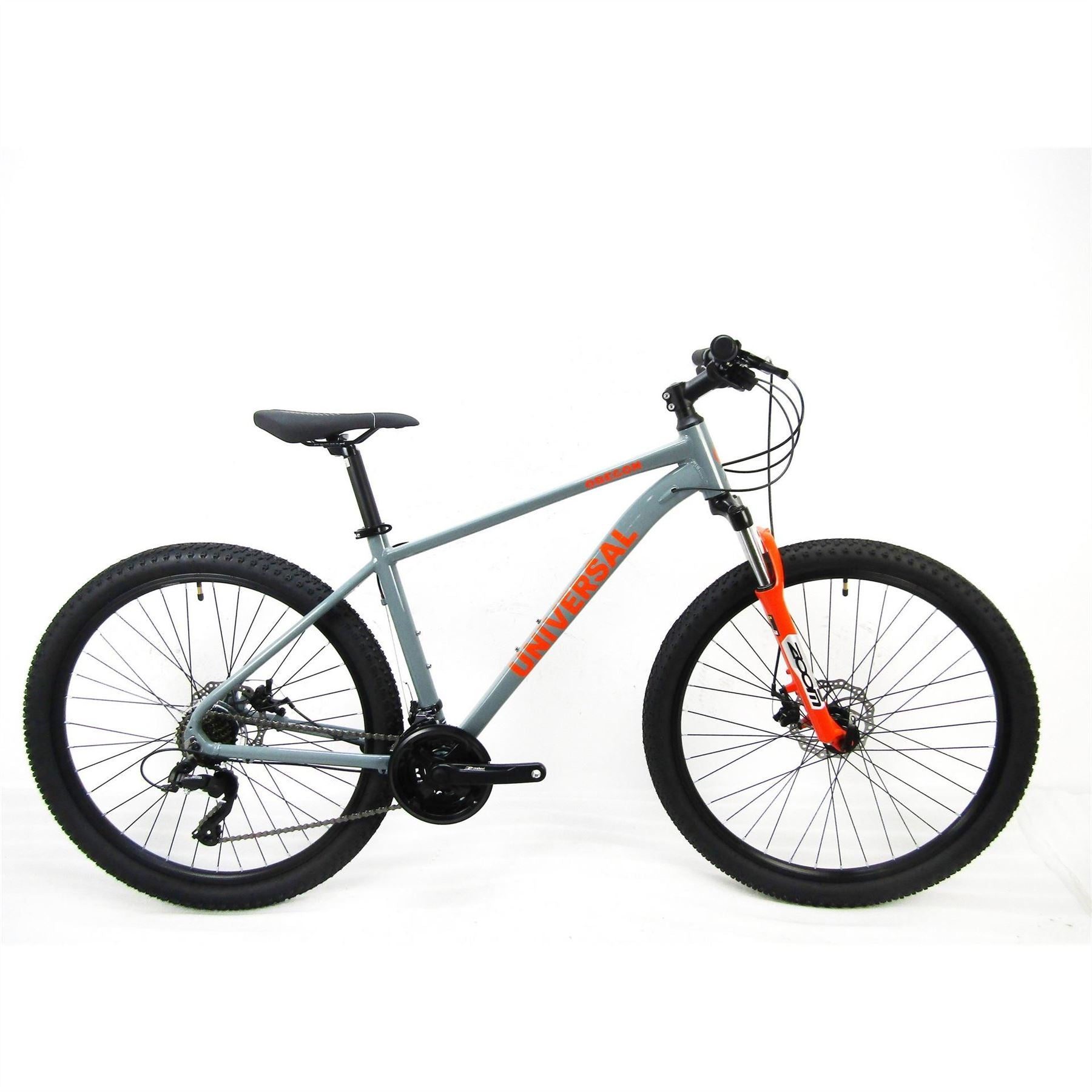

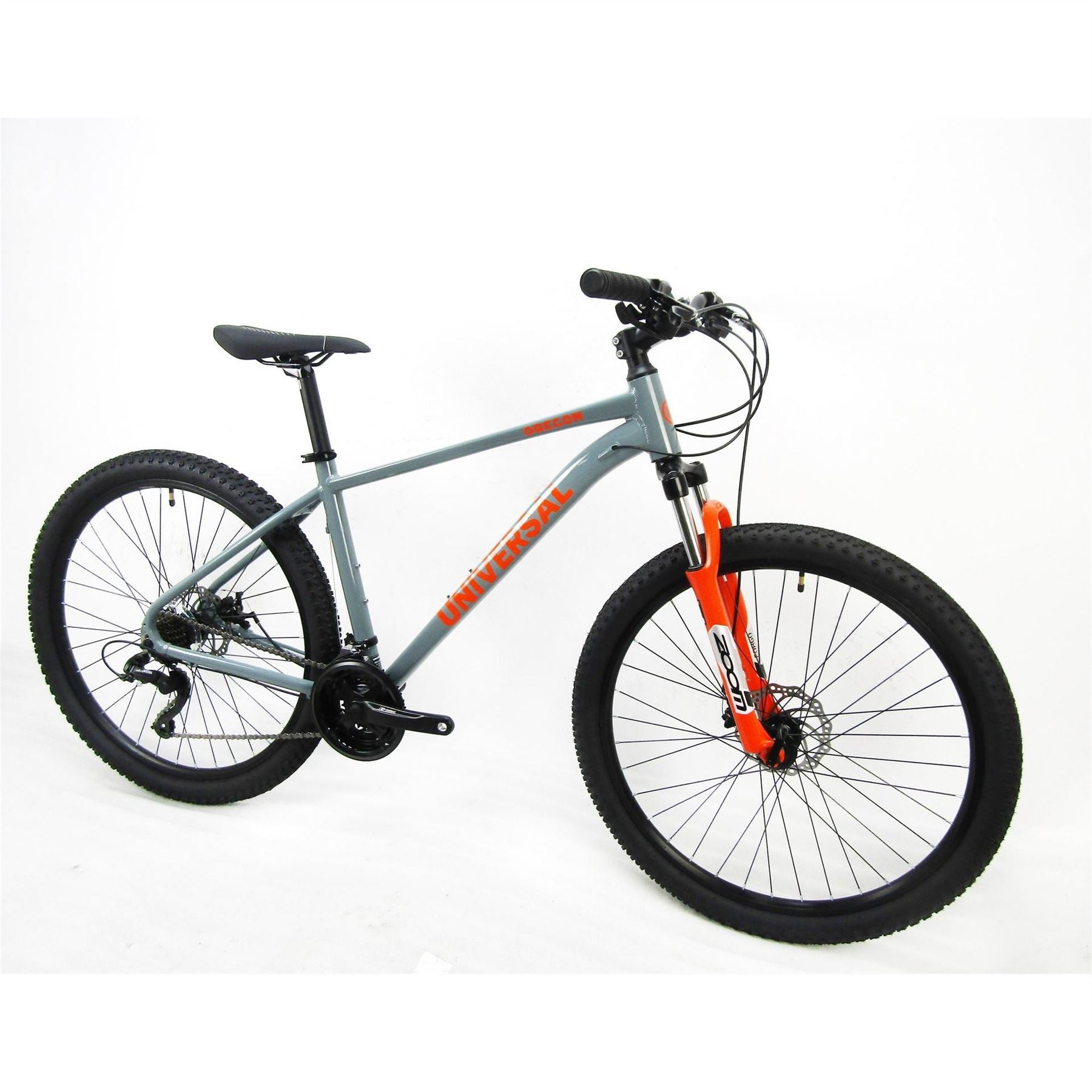

Universal Mountain Bike

---

Key Features

• Lightweight Alloy Frame
• 2x7 Speed Microshift Gears
• Zoom Mechanical Disc Brakes

---

Specifications

Frameset

• Frame: Alloy, Internal cable routing

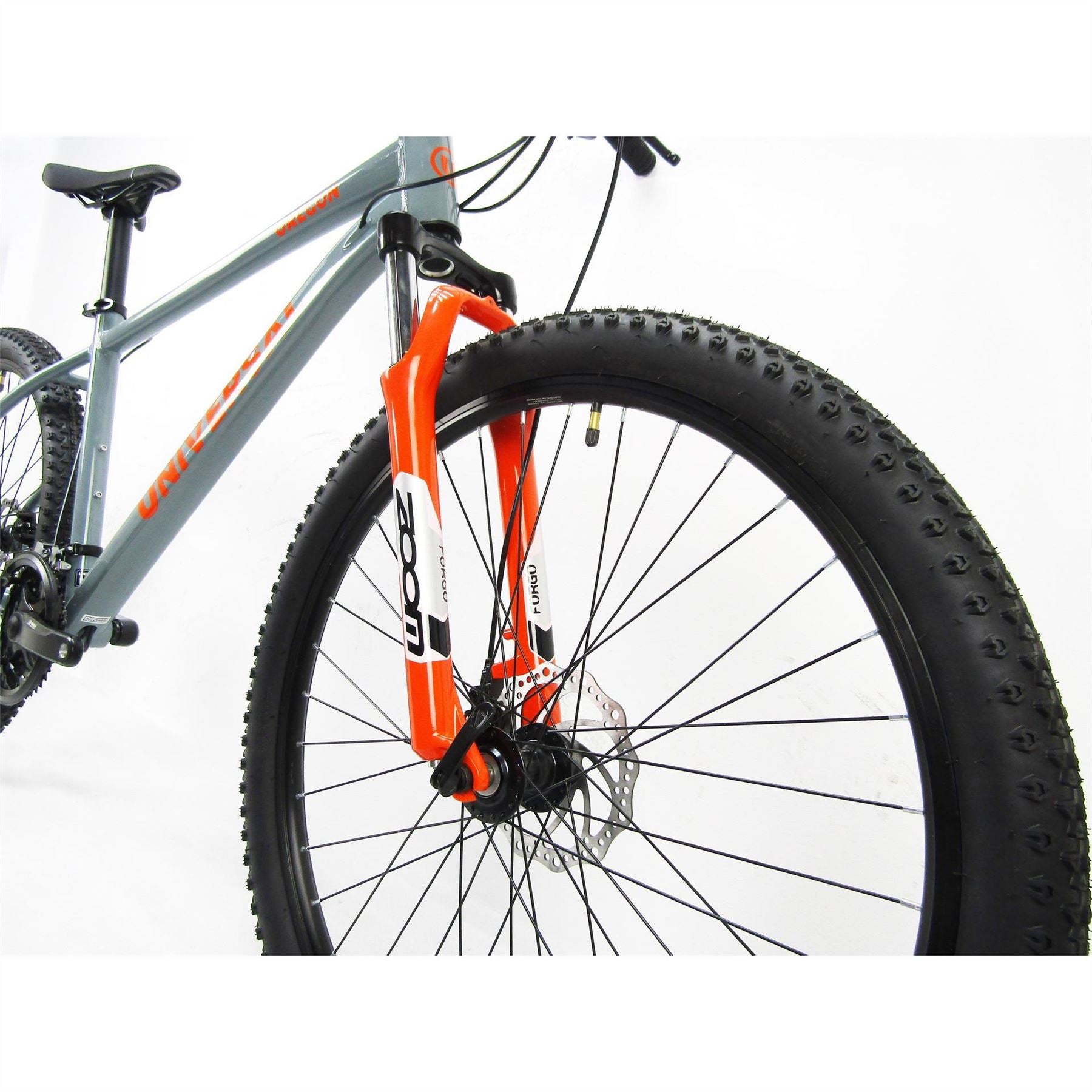

• Fork: HL 80mm travel suspension fork
• Rear Shock: N/A

Wheels

• Rims: Alloy, double wall 27.5, 36h
• Hubs: Shunfeng, SF-A225F
• Tyres: 27.5 x 2.10 rubber tyres

Drivetrain

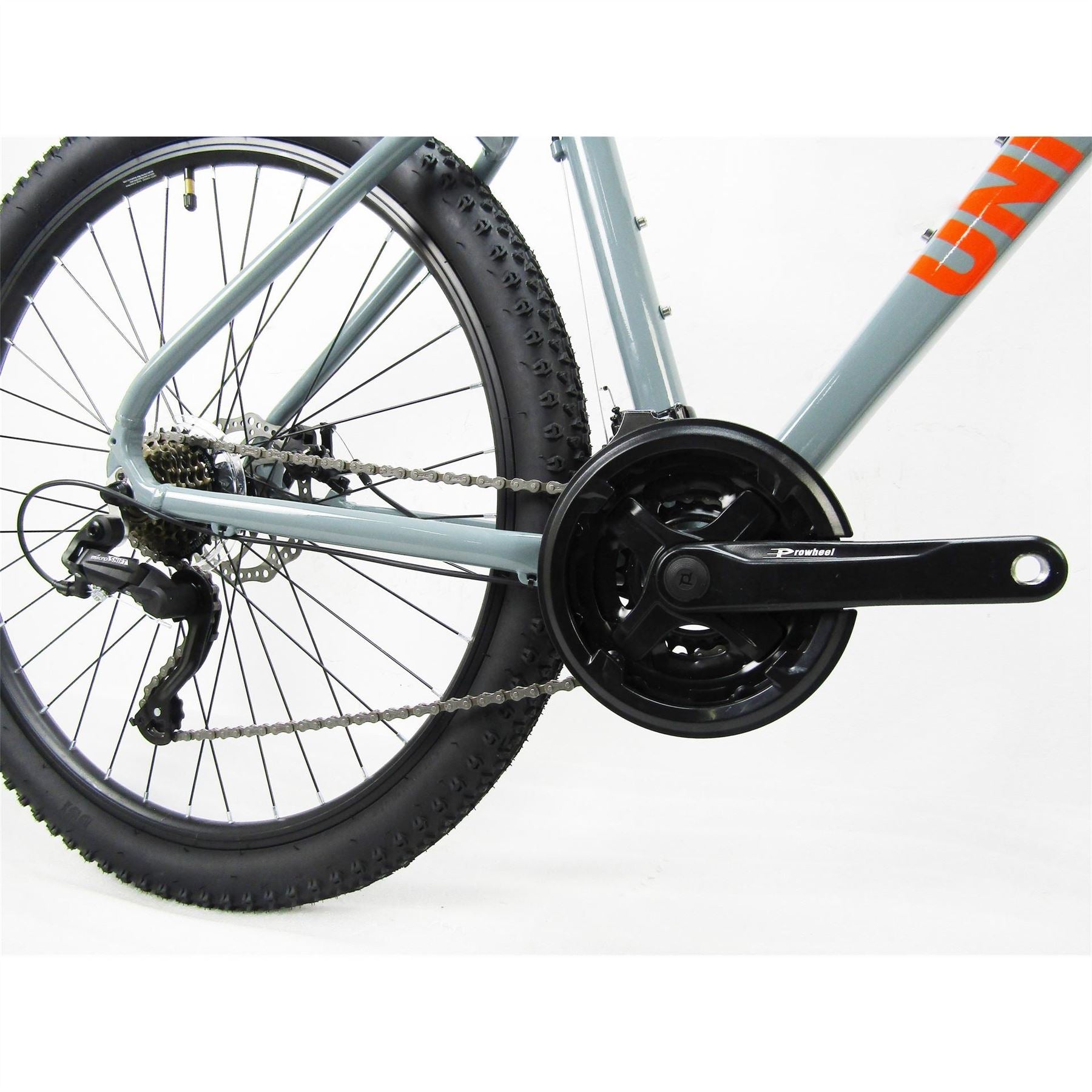

• Crankset: Prowheel, TA-CN68, 23/34/42t, 170mm.
• Shifters: Microshift TS38, 3x7 speed.
• Rear Derailleur: Microshift RD-M21L, 7 speed.
• Front Derailleur: Microshift, FD-M20
• Chain: KMC Z7
• Cassette: Shimano, TZ500, 7 speed, 14-28t.
• Bottom Bracket: Neco B910, 68x122mm.

Components

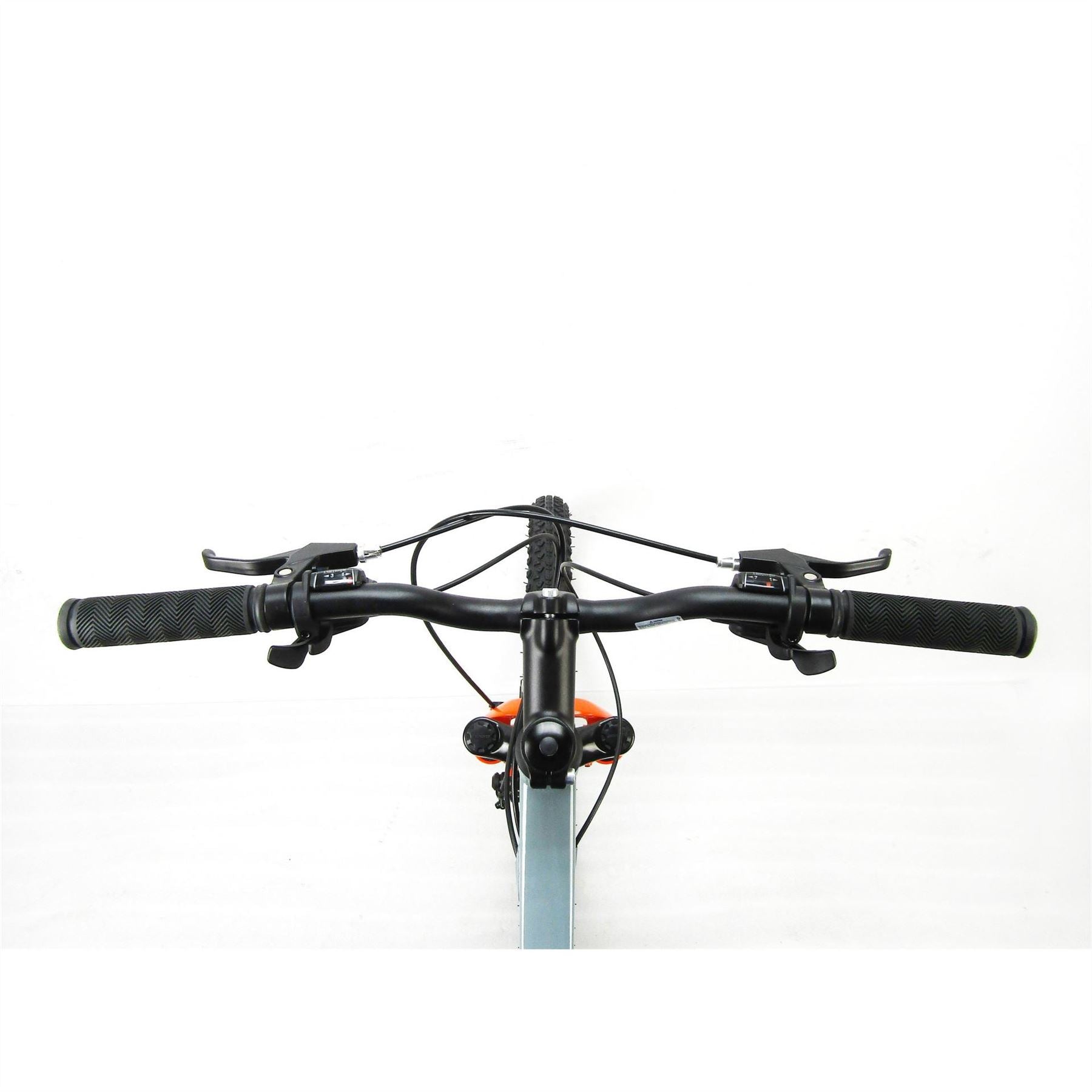

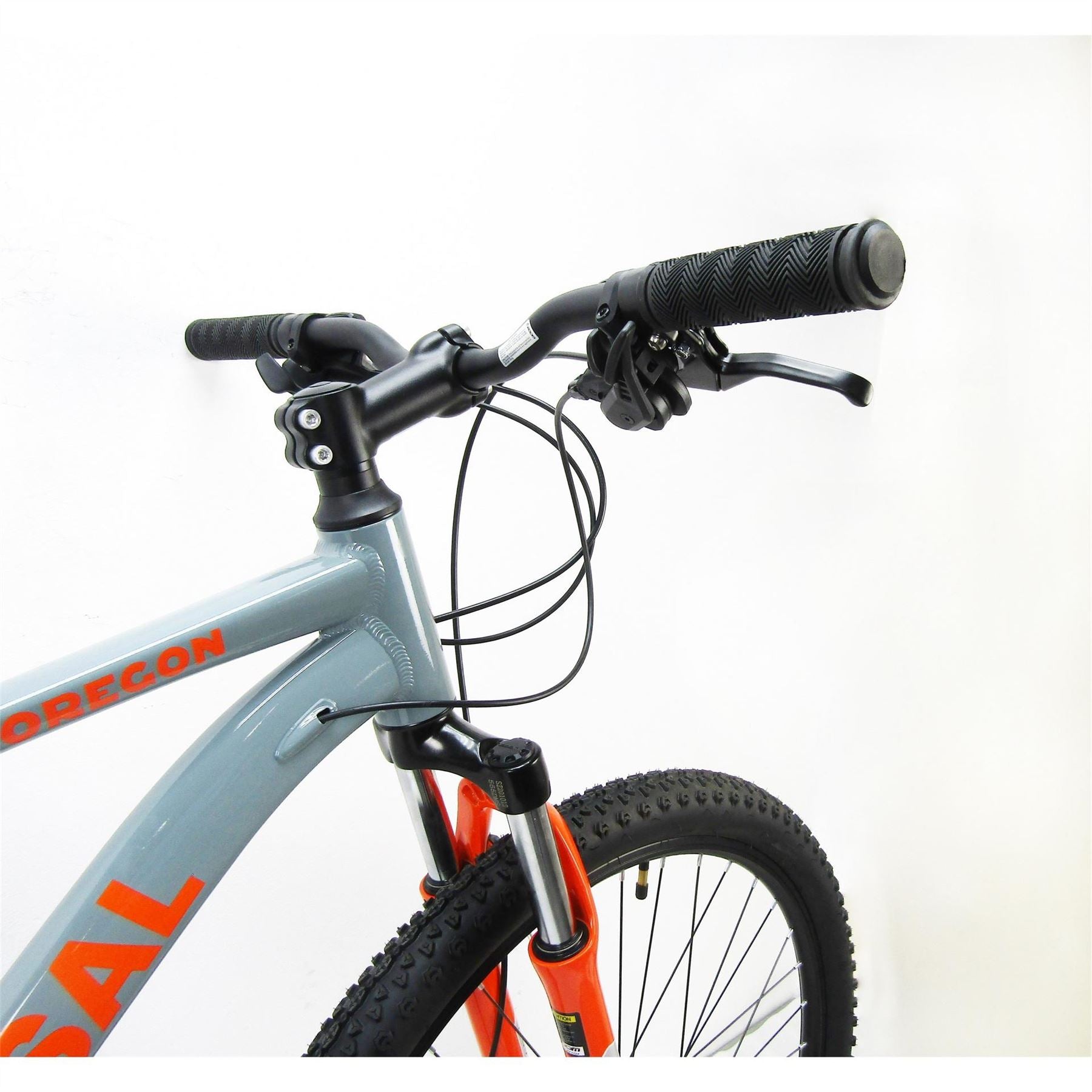

• Handlebar: Alloy, 620mm, 30mm, 6 deg.
• Stem: Alloy, 90mm
• Grips: 130mm, black
• Brakes: Zoom, DB330, alloy mechanical disc brake
• Saddle: Velo VL-3275, steel rail, black.
• Seatpost: Alloy, 30.4 x 300mm

---
