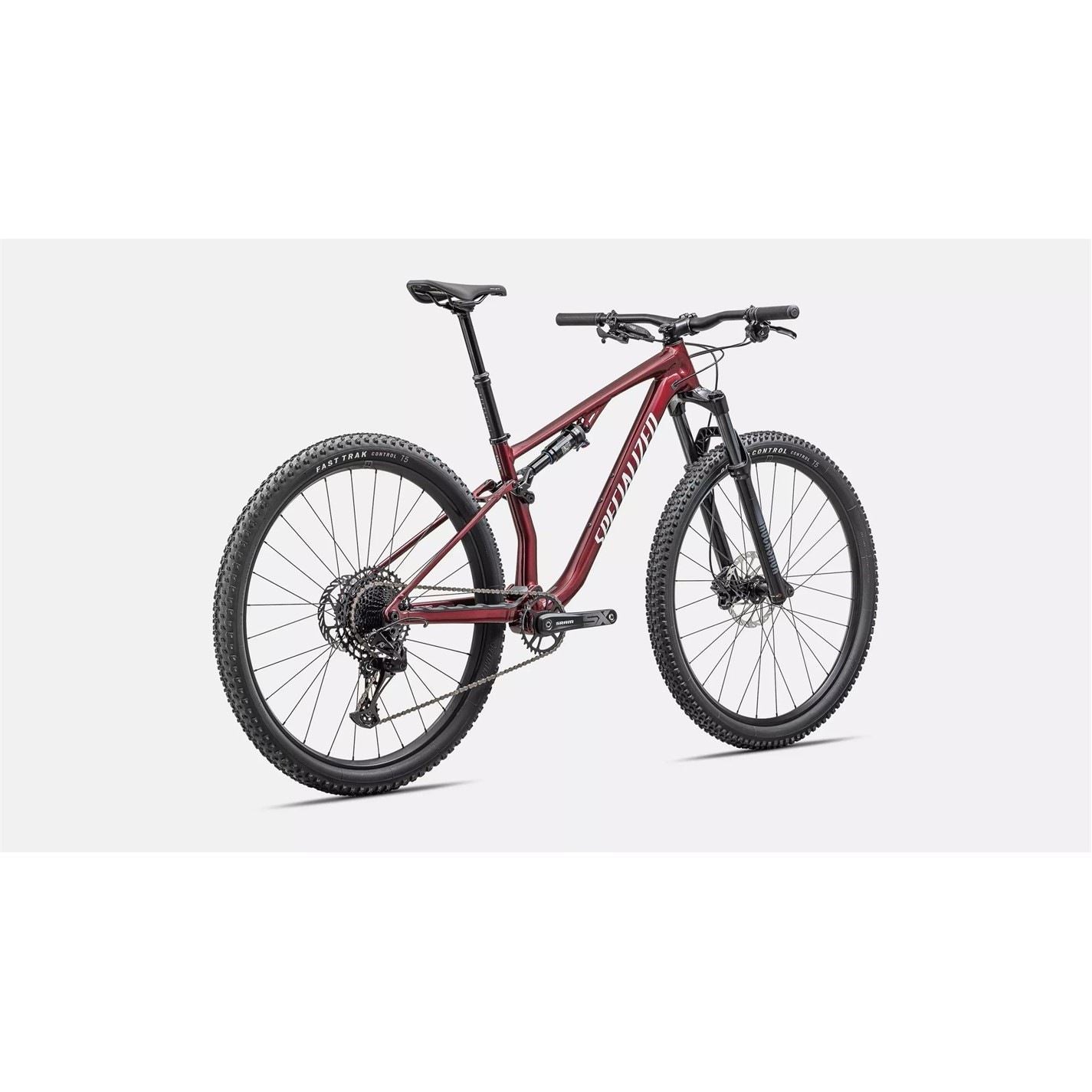

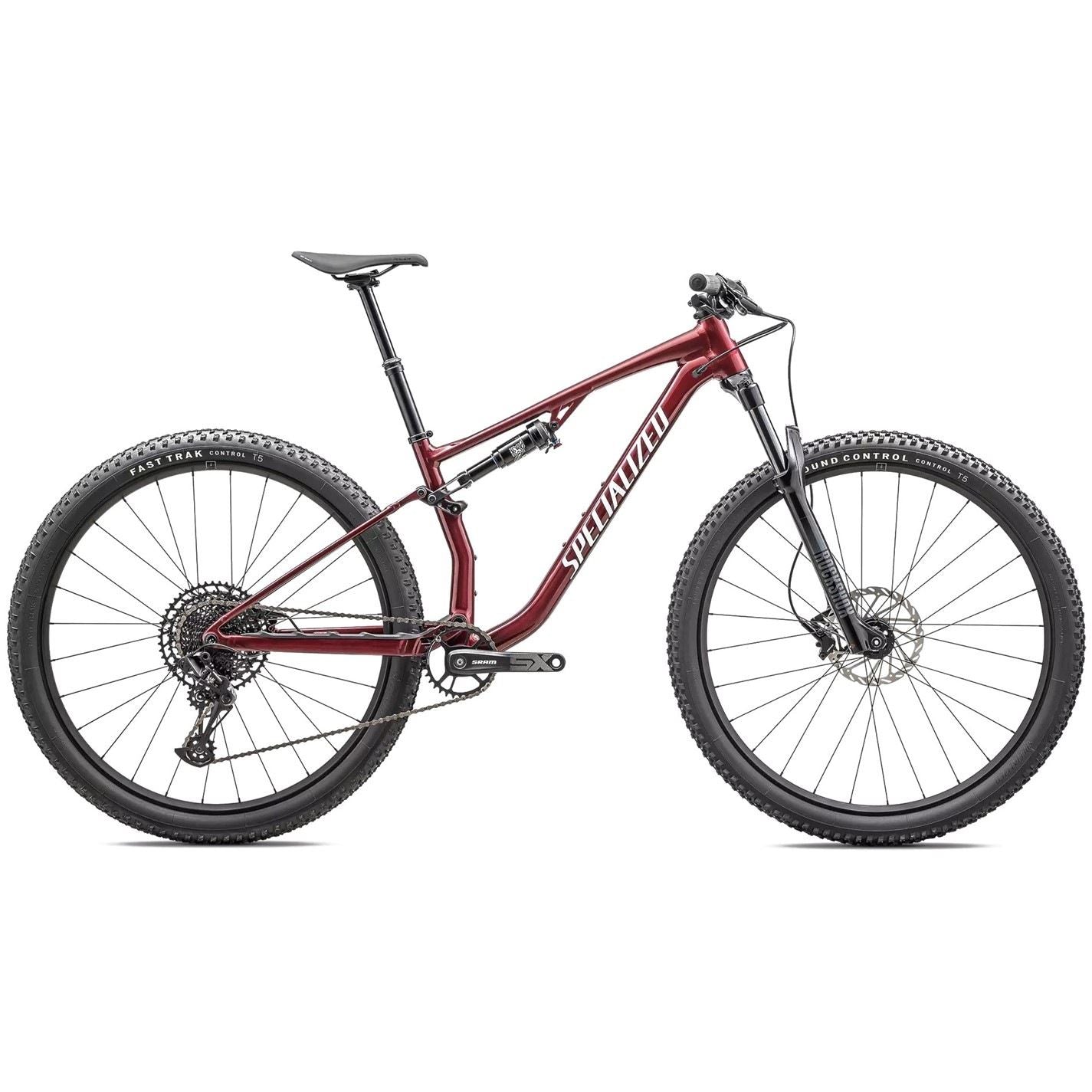

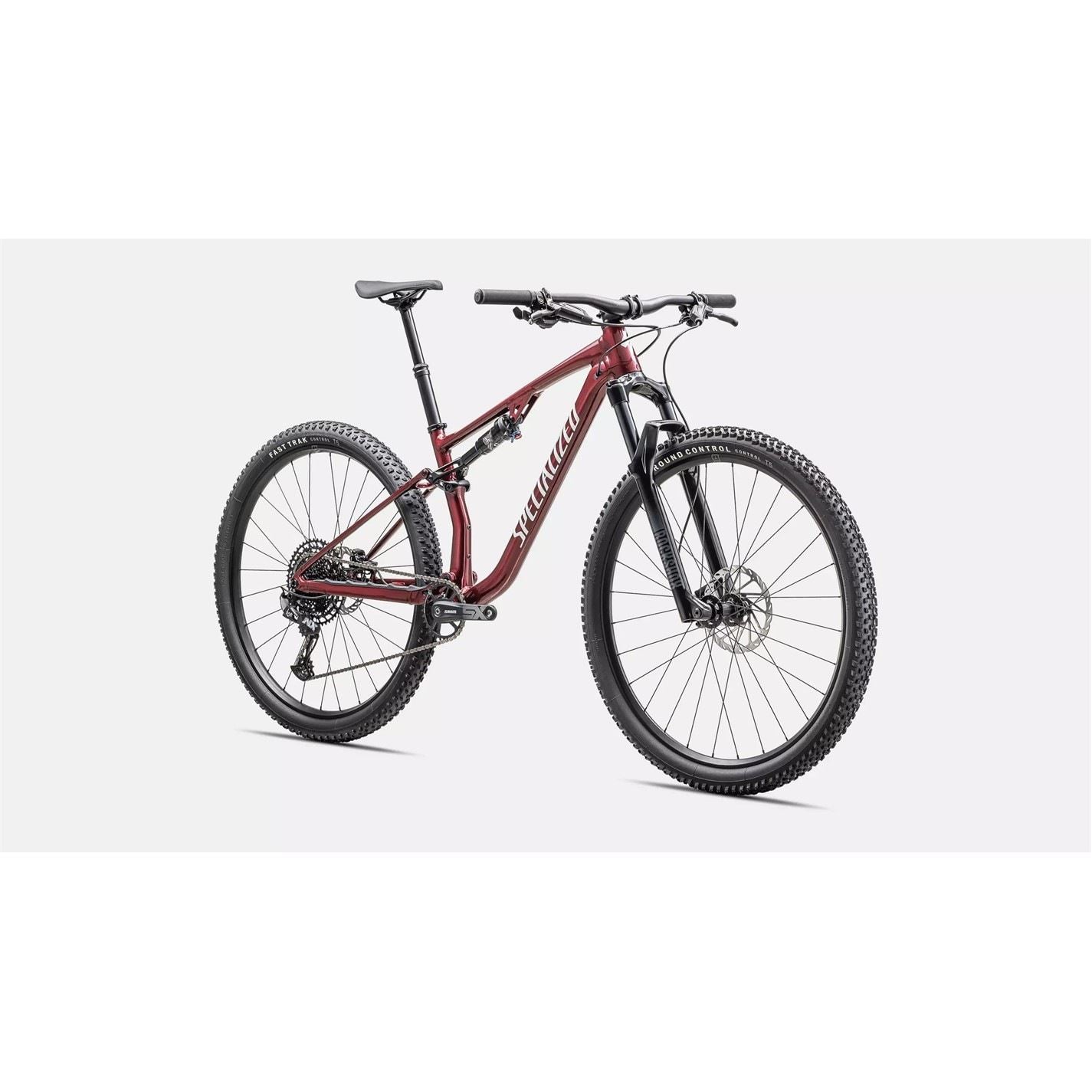

Specialized Chisel Mountain Bike

About the Chisel

The Lightest, Fastest Alloy Full Suspension Bike in the World. 18.4% lighter than the closest competitor and sharing geometry and kinematics from our World Cup ready Epic 8 mountain bike, the all-new Chisel delivers performance you can feel—whether you’re racing “between the tape” or ripping solo hot laps on local trails.

---

---

Why you’ll love it

• The Lightest- 18.4% lighter than the closest competitor. Thanks to D’Aluisio Smartweld, Chisel boasts the lightest aluminum XC frameset in its class. Each highly-manipulated tube features varied wall thicknesses and shaping that make it lightweight and incredibly strong.
• Most Capable- With 110mm of Ride Dynamics tuned suspension, the high performance pedigree of Chisel is traced directly to the Epic 8, our World Cup race machine. DNA from the Epic 8, like advanced kinematics, Ride Dynamics tuned suspension, and progressive geometry can all be found in the Chisel.
• Incredibly Efficient-Utilizing geometry and kinematics that went into our Epic 8 platform, the Chisel is incredibly efficient. A steep seat tube keeps the rider in an optimal pedaling position. Honed anti-squat reduces pedal-bob. Every watt to the pedals translates to forward motion.

---

Specifications

Frameset

• Frame: Specialized D'Aluisio Smartweld M5 Alloy, Hydroformed tubes, Progressive XC Geometry, 110mm travel, internal cable routing, BSA BB, 12x148mm spacing, 30.9mm Dropper post compatible
• Fork: Rockshox Recon Silver RL, 120mm travel, Motion Control damper, 42mm offset, Maxle Stealth, 15x110 thru-axle
• Shock: X-Fusion PRO-02, 190x40mm, Ride Dynamics Tuned, Rebound adjust, Compression Adjust

Wheels

• Rims: Specialized Alloy, Tubeless ready, 27mm
• Tyres: Specialized Ground Control, Control Casing, T5 Compound, 29x2.35, Specialized Fast Trak, Control Casing, T5 Compound, 29x2.35

Drivetrain

• Crankset: SRAM SX Eagle, Powerspline, 32t chainring, 165/170/175mm
• Shifters: SRAM SX Eagle, trigger, 12-speed
• Rear Derailleur: SRAM NX Eagle, 12-speed
• Chain: SRAM SX Eagle, 12-speed
• Cassette: SRAM PG-1210 Eagle 11-50t

Components

• Handlebar: Specialized Alloy, 20mm rise, 31.8mm, 760mm wide
• Grips: Specialized Trail Grips
• Brakes: SRAM Level T hydraulic disc, 2-Piston Caliper
• Saddle: Body Geometry Power Sport, steel rails, 143/155mm
• Dropper: TranzX Dropper Seatpost, 30.9mm

Specialized Chisel Sizing

	XS	S	M	L	XL
Rider Height (cm)	148 - 155	158 - 165	165 - 178	178 - 185	185 - 193
Rider Height (in)	4'10 - 5'1	5'2 - 5'5	5'5 - 5'10	5'10 - 6'1	6'1 - 6'4
