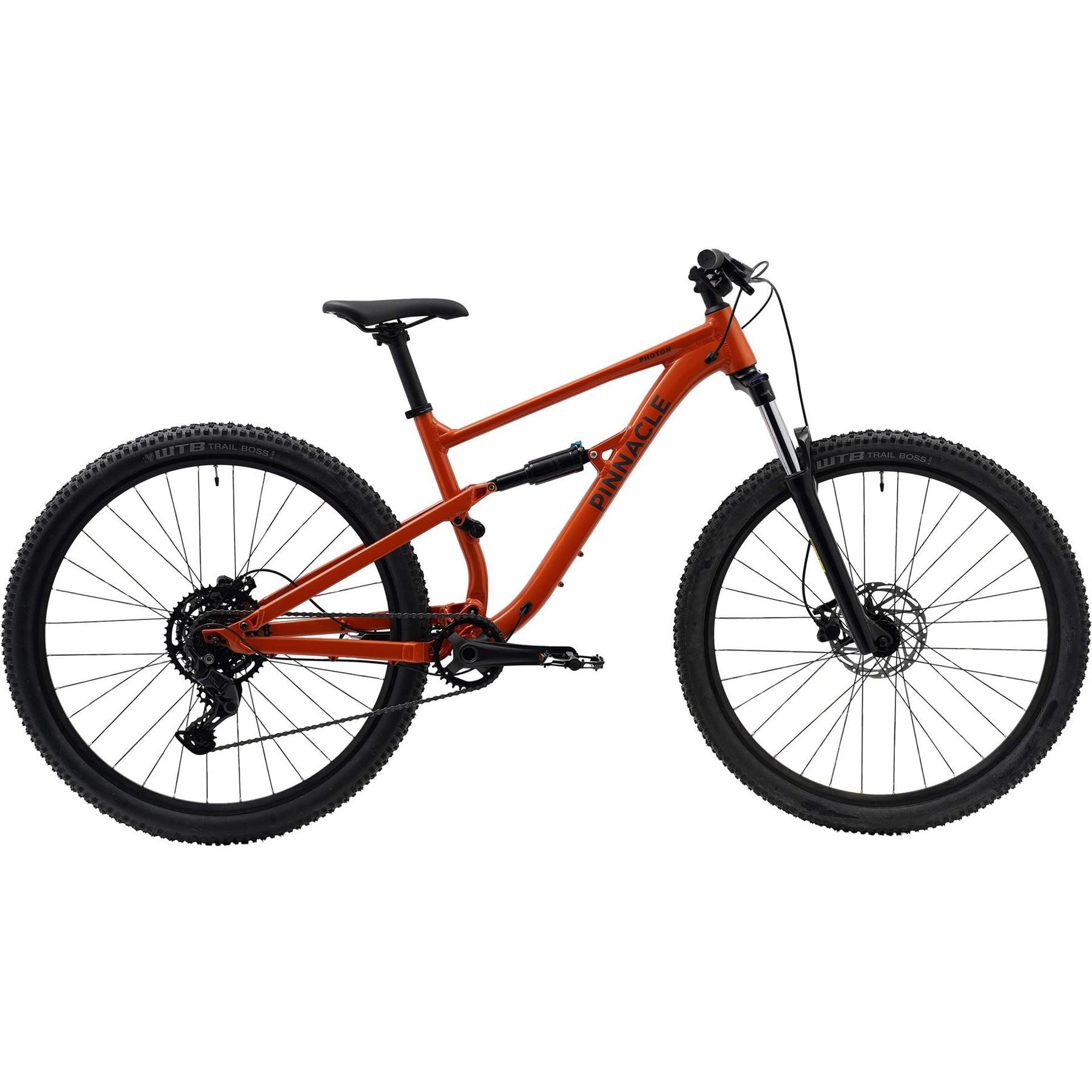

Pinnacle Photon Mountain Bike

A mountain bike for trails and cross-country riding. With a relatively short 120mm travel, the Photon is agile and efficient on the climbs, whilst the modern geometry and full-suspension set up are there to keep things under control on the descents.

For the rider looking for the added traction, control and comfort that a full-susser brings. Ideal for someone who is riding cross country or single-track trails. Maybe this is a first full-suspension MTB, stepping up from hardtail mountain bikes. All at a super affordable price.

Key Features

• Alloy 120mm full-suspension frame, internal cable routing, dropper post routing
• Suntour XCM32 120mm travel fork with 32mm stanchions
• Suntour Raidon Lo-Air shock
• Shimano Cues 1x9 speed drivetrain
• WTB Trailboss 29x2.25 tires

Specifications

Frameset

• Frame: 6061 Alloy full-suspension, internal cable routing, dropper post routing
• Fork: Suntour XCM32, 120mm travel, 32mm stanchion, coil, pre-load, lockout
• Rear Shock: Suntour Raidon Lo Air, 190x15mm.

Wheels

• Rims: Alloy, 29, 32h, presta valve.
• Hubs: Joytec, D761/2, alloy, disc brake, 6 bolt, 32h, F: 100mm QR, R: 135mm QR
• Tyres: WTB Trail Boss 29x2.25, Comp, wire bead, DNA Compound.

Drivetrain

• Crankset: Prowheel Charm, FD04S, 32t, narrow wide chainring.
• Shifters: Shimano Cues, U4000, 9 speed.
• Rear Derailleur: Shimano Cues, U4000, 9 speed shadow.
• Front Derailleur: N/A
• Chain: KMC Xglide.
• Cassette: Shimano LG300, 9 speed, 11-46t, 11-13-15-17-20-23-28-36-46t.
• Bottom Bracket: Prowheel.

Components

• Handlebar: Alloy 31.8mm, 20mm rise, 6 deg, S: 760mm, M-L: 780mm.
• Stem: Alloy, 31.8mm, 3 deg, 45mm.
• Grips: Velo, black, 130mm.
• Brakes: Tektro HD-M280, hydraulic disc brake, F: 180mm, R: 160mm rotors.
• Saddle: Black, steel rail.
• Seatpost: Alloy 31.6mm, 350mm.

Pinnacle Photon Sizing
