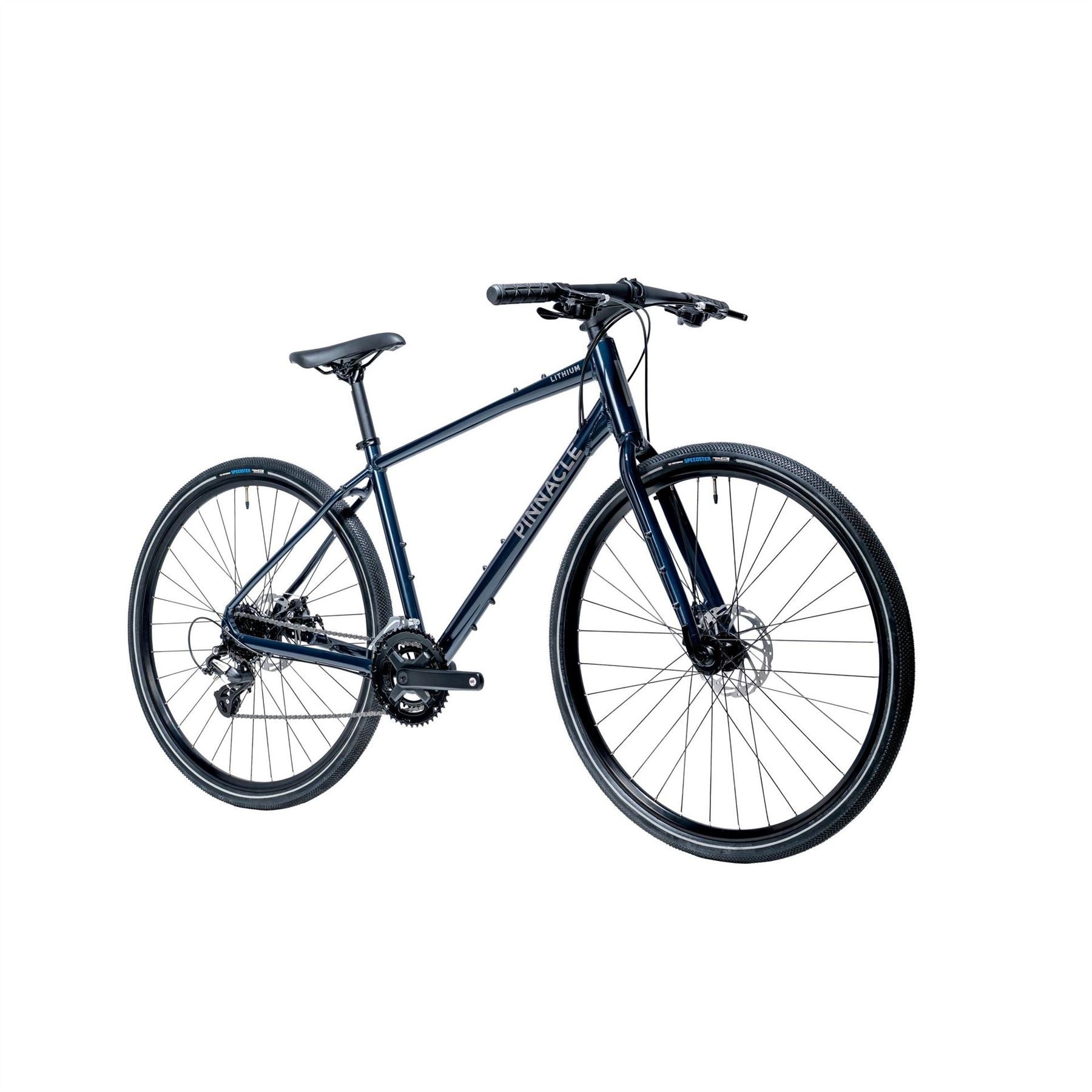

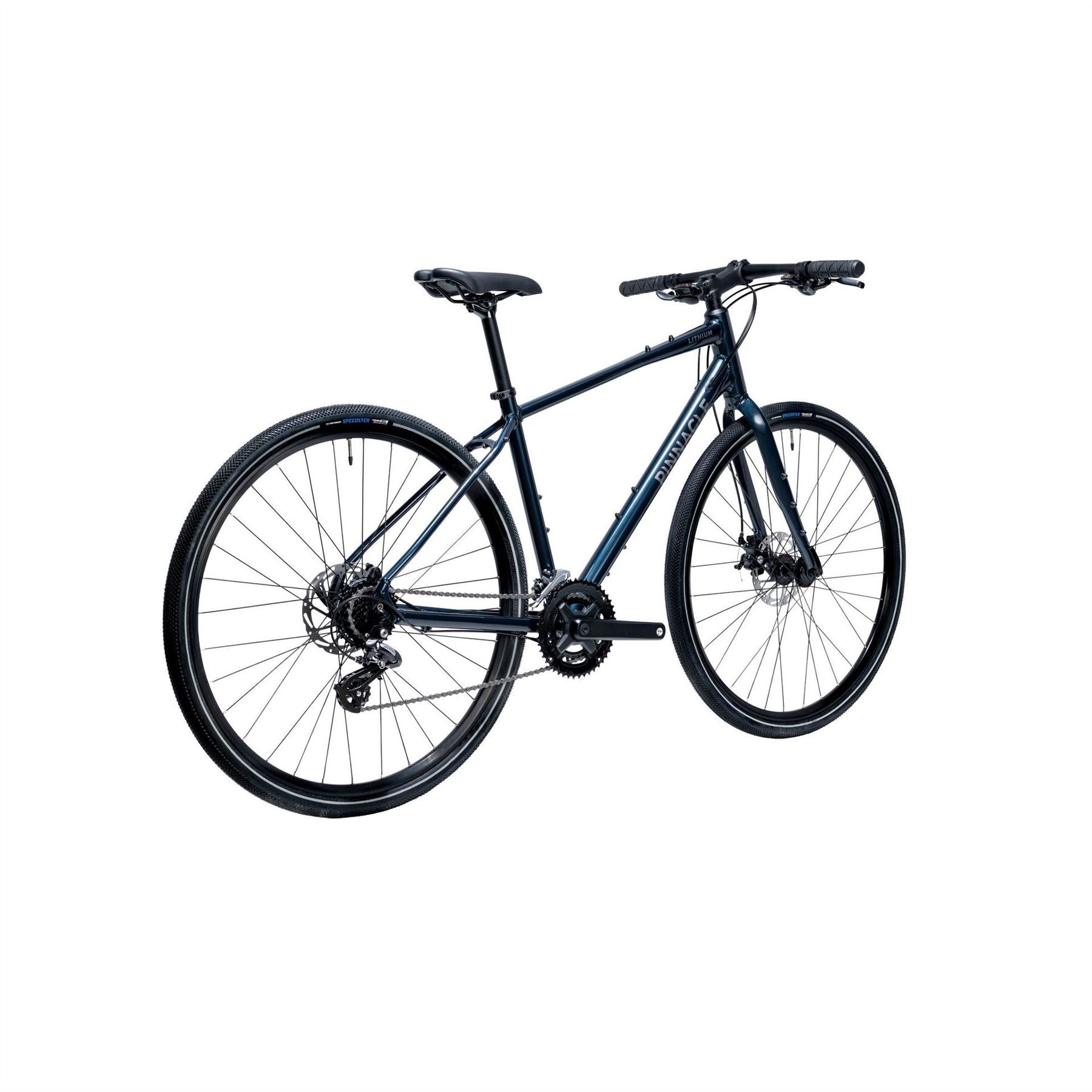

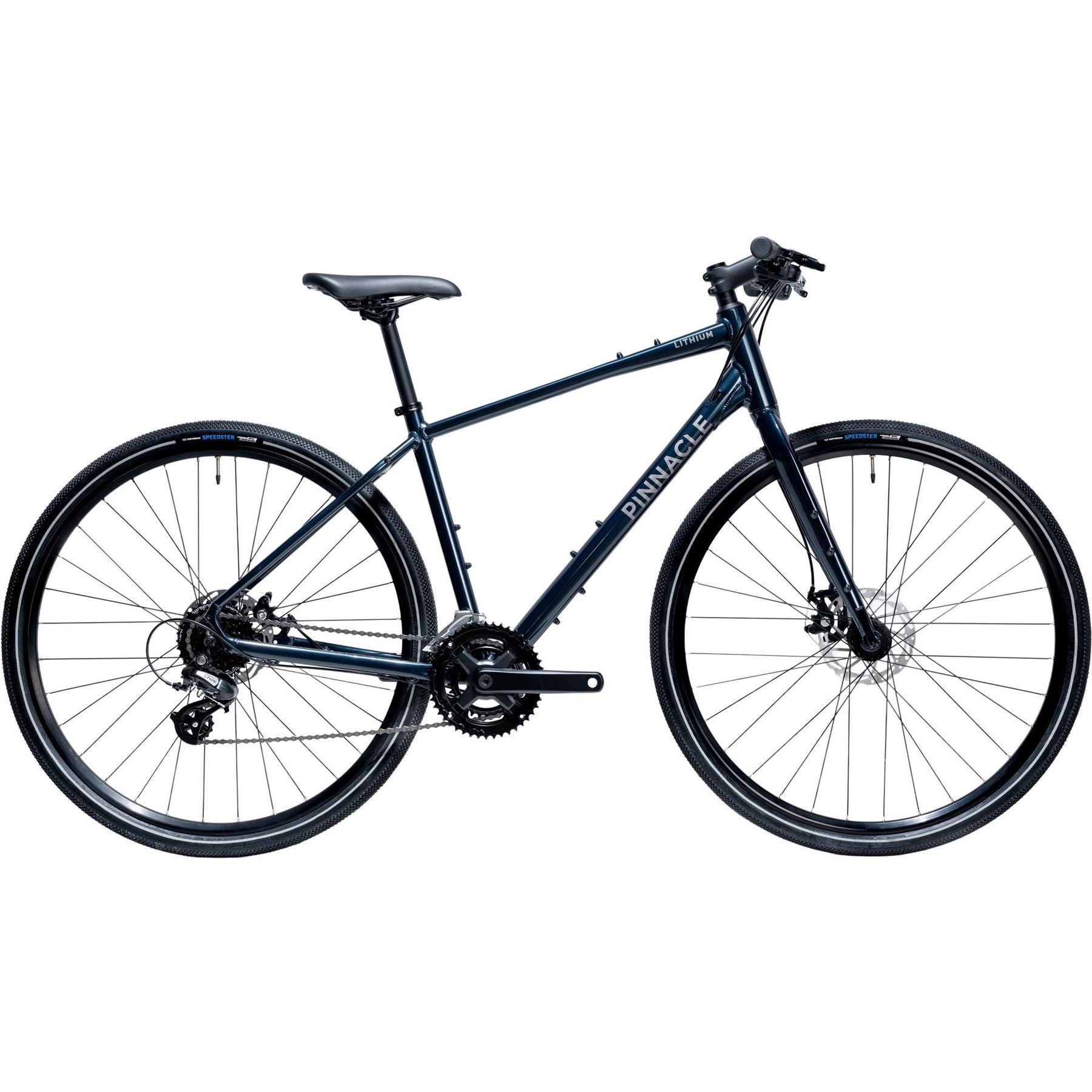

Pinnacle Hybrid Bike

The Lithium is made for everyday life, nipping round town, the daily commute, or the pub run in the evening. The Lithium is perfectly suited for all the getting from A to B in everyday life. It is also great for getting out on paths/in parks for leisure or fitness riding.

For someone looking for a comfortable, simple, reliable bike for getting around in everyday life on 2 wheels. Or for the rider wanting an affordable leisure or fitness hybrid bike.

Key Features

• Lightweight alloy frame, with comfort focused riding position.
• Shimano Altus 2x8 speed drive train.
• Tektro disc brakes.
• Vee Speedster 700x40c tires with reflective sidewall.

Specifications

Frameset

• Frame: 6061 alloy, internal cable routing, mud guard mounts, rack mounts.
• Fork: Steel fork, mud guard mounts, QR.
• Rear Shock: N/A

Wheels

• Rims: 700c alloy double wall, presta valve.
• Hubs: Joytec, D761/2, alloy, disc brake, 6 bolt, 32h, F: 100mm QR, R: 135mm QR
• Tyres: Vee tire Speedster, 700x40c, wire bead, reflective side wall.

Drivetrain

• Crankset: Prowheel TB-CY10, 46x30, square taper.
• Shifters: Shimano Altus, M315, 2x8 speed, rapid fire.
• Rear Derailleur: Shimano Altus, M310-L, 8 speed.
• Front Derailleur: Shimano Altus, M315.
• Chain: KMC, Z-83
• Cassette: Shimano Altus, HG31, 8 speed, 11-34t.
• Bottom Bracket: Alloy, sealed cartridge bearing, square taper, 73x122.5mm.

Components

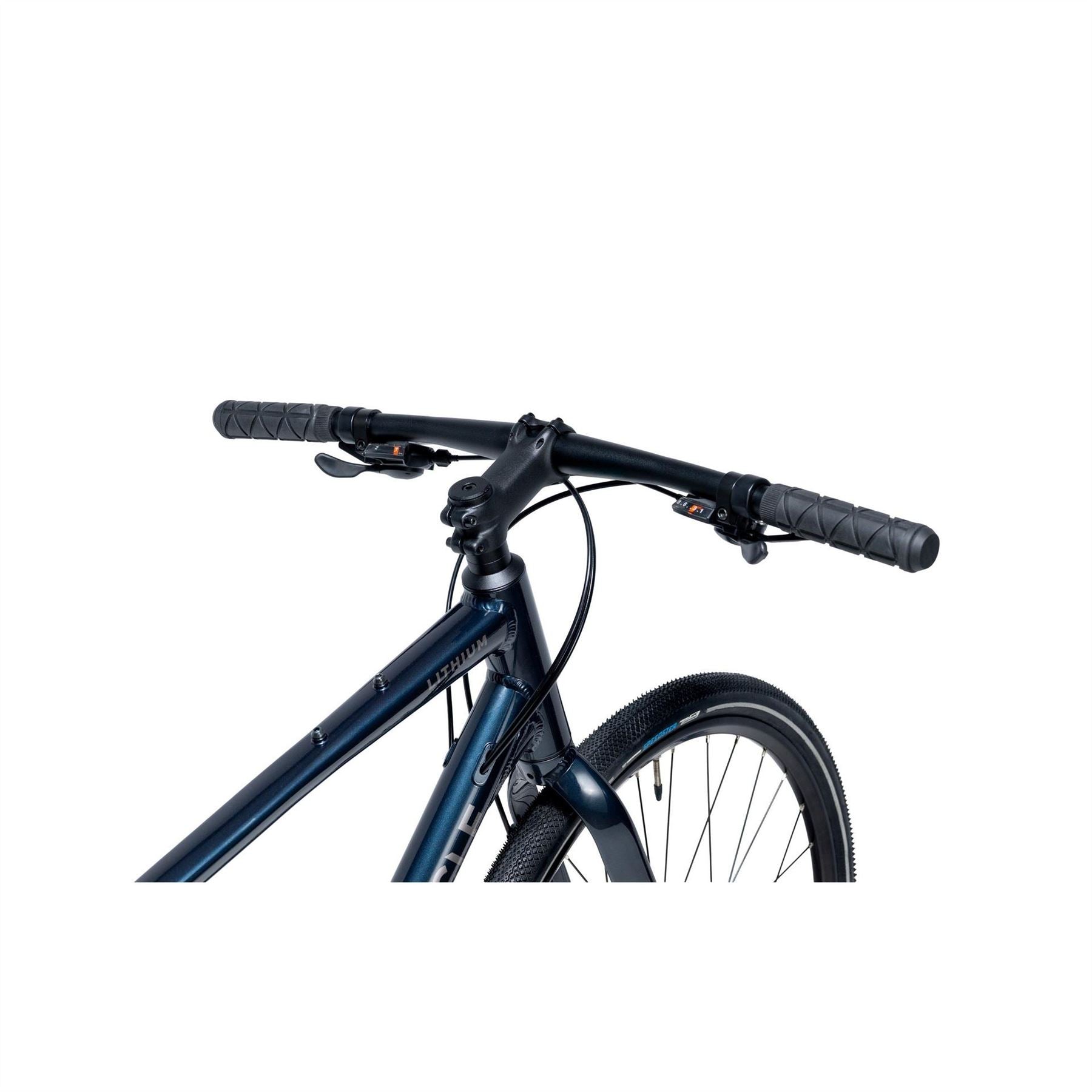

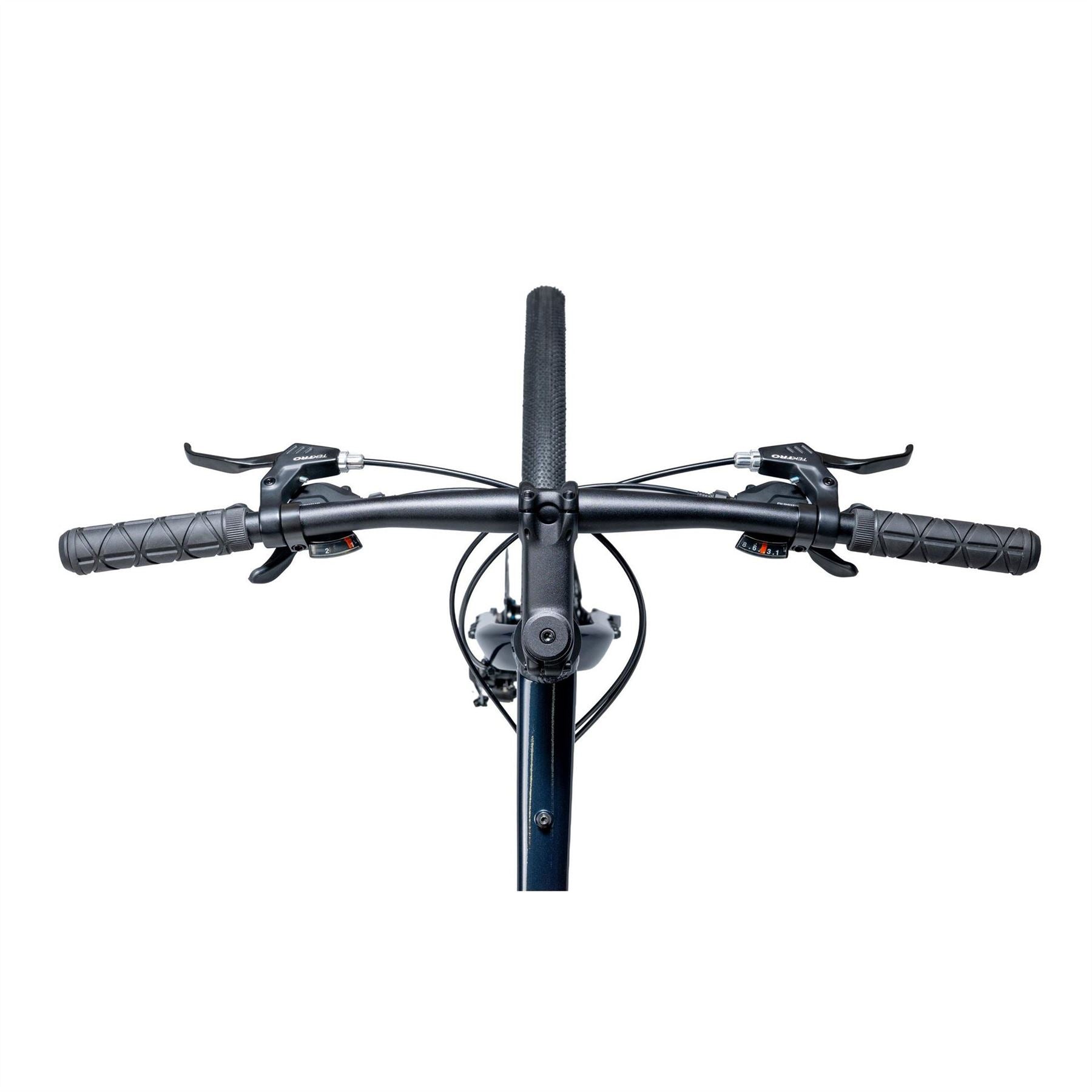

• Handlebar: Alloy, 31.8mm, 6 deg, flat, 660mm.
• Stem: Alloy, 31.8mm, 6 deg, S: 75mm, M-XL:90mm.
• Grips: Velo, black, end plug.

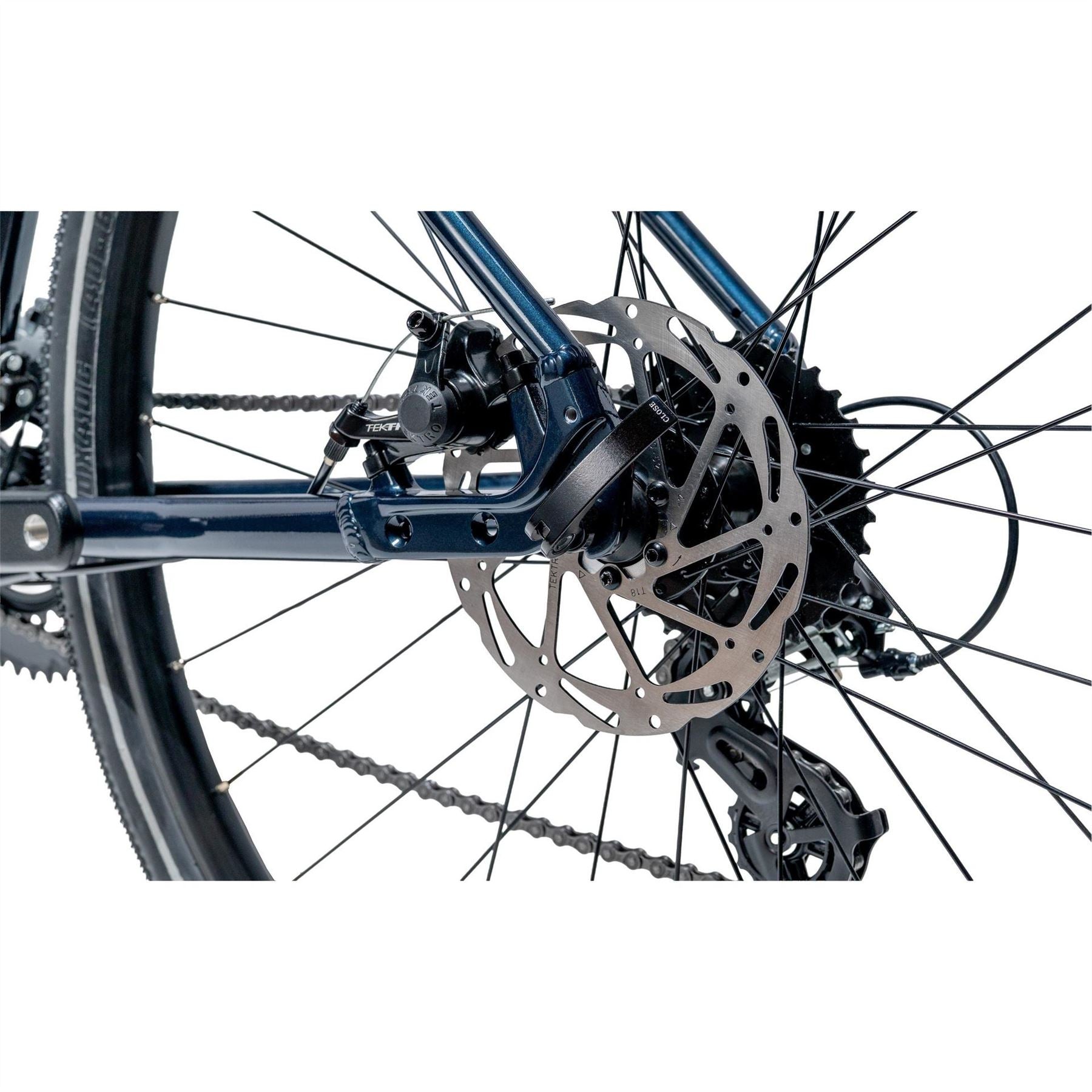

• Brakes: Tektro MD-M280, mechanical disc, 160mm rotor.
• Saddle: Black, steel rail.
• Seatpost: Alloy, 27.2, 350mm, 15mm offset.

Pinnacle Lithium Sizing
