Pinnacle 1 Gravel Bike

£800.00
£800.00 £1,150.00
Save 30% Sold out
Tax included.
Can only be shipped to the UK.
Low stock
Size: L
Colour: Silver

SKU: L1000000027732691575911430

Description

About the Pinnacle Arkose 1

Whether casually riding off into the sunset, out with the weekend gang or on a solo adventure, the Pinnacle Arkose excels in versatility. Don’t be fooled by the gravel name, this is a bike that lives for the tarmac as much as the off-road lumps, bumps and rougher surfaces.

At the heart of the Arkose is a strong and reliable aluminium frame while lightweight full carbon forks can accommodate mudguard mounts for those gravel days in the saddle. If you’re new to drop bar riding then the 8-speed Shimano Claris groupset offers up an excellent starting point and the inclusion of Tektro MD-C510 flat mount mechanical disc brakes disc brakes bring added confidence across various terrains and weather conditions.

When you’re mixing up the terrains then you need a pair of tyres you can rely and in all weathers, which is exactly what the WTB Resolute 42mm offer up.

The Independent's best gravel bike for £1000 or under: 'If you’re looking for a budget-friendly gravel bike to get out and about on, this capable machine from Pinnacle has got everything you need.'

Key Features

  • Lightweight and durable 6061 heat treated aluminium frame
  • Lightweight and comfortable full carbon fork with dynamo routing and mudguard mounts for maximum versatility. Flat mount disc brakes and 12mm thru-axles for futureproof peace of mind
  • Smooth shifting and durable 8-speed Shimano Claris drivetrain
  • Tektro MD-C510 flat mount mechanical disc brakes
  • WTB Resolute 42mm tyres

Due to stock availability, some components may change without notice.

Specifications

Frameset

  • Frame: 6061 heat treated aluminium
  • Fork: full carbon fork with dynamo routing and mudguard mounts for maximum versatility. Flat mount disc brakes and 12mm thru-axles

Wheels

  • Rims: WTB ST i19 TCS 2.0 29/700c 32H Disc
  • Hubs: (F) Novatec 12mm thru axle 100mm, 32H, 6-BOLT (R) Novatec QR, 135mm 32H 6-BOLT
  • Tyres: WTB Resolute 700x42c Comp tan wall

Drivechain

  • Pedals: n/a
  • Crank: FSA Temp Adventure 48X32T
  • Front Derailleur: Shimano Claris FD-R2000
  • Rear Derailleur: Shimano Claris RD-R2000 8-Speed
  • Shifters: Shimano Claris ST-R2000 2x8
  • Chain: KMC x8
  • Bottom Bracket: FSA BB-7420ST 68mmx118mm
  • Rear Cogs: Sunrace 11-34t 8-Speed

Components

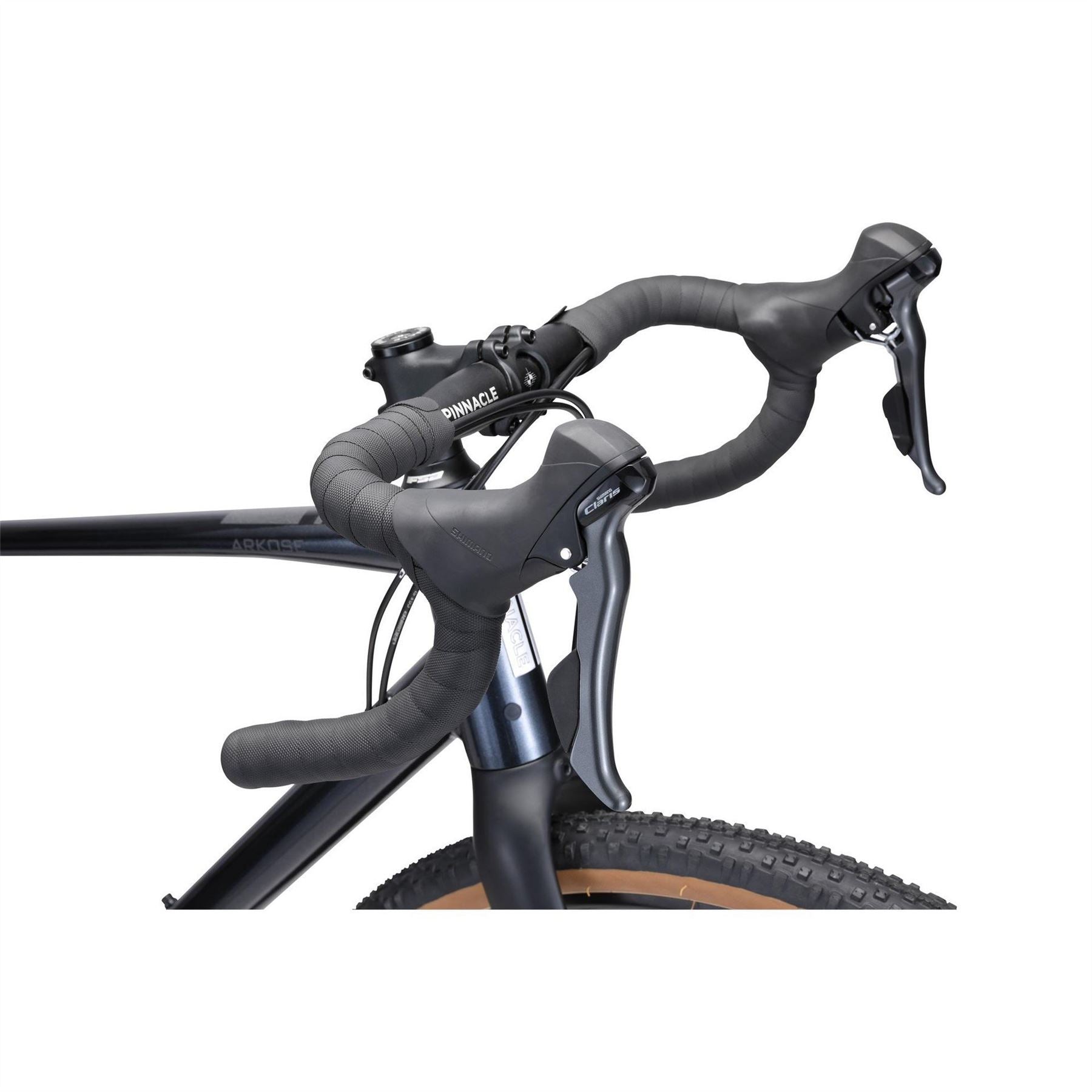

  • Handlebar: Pinnacle alloy 31.8mm, DROP: 124mm, REACH: 80mm, WIDTH: 420MM (XS-M) 440 (L-XL)
  • Grips: Shock-proof anti-slip gel bar tape, black, 3.5mm
  • Stem: 31.8mm, angle: -7°, length: 80/90/100mm (XS-S, M-L, XL)
  • Headset: FSA Orbit 1 1/8-1.5

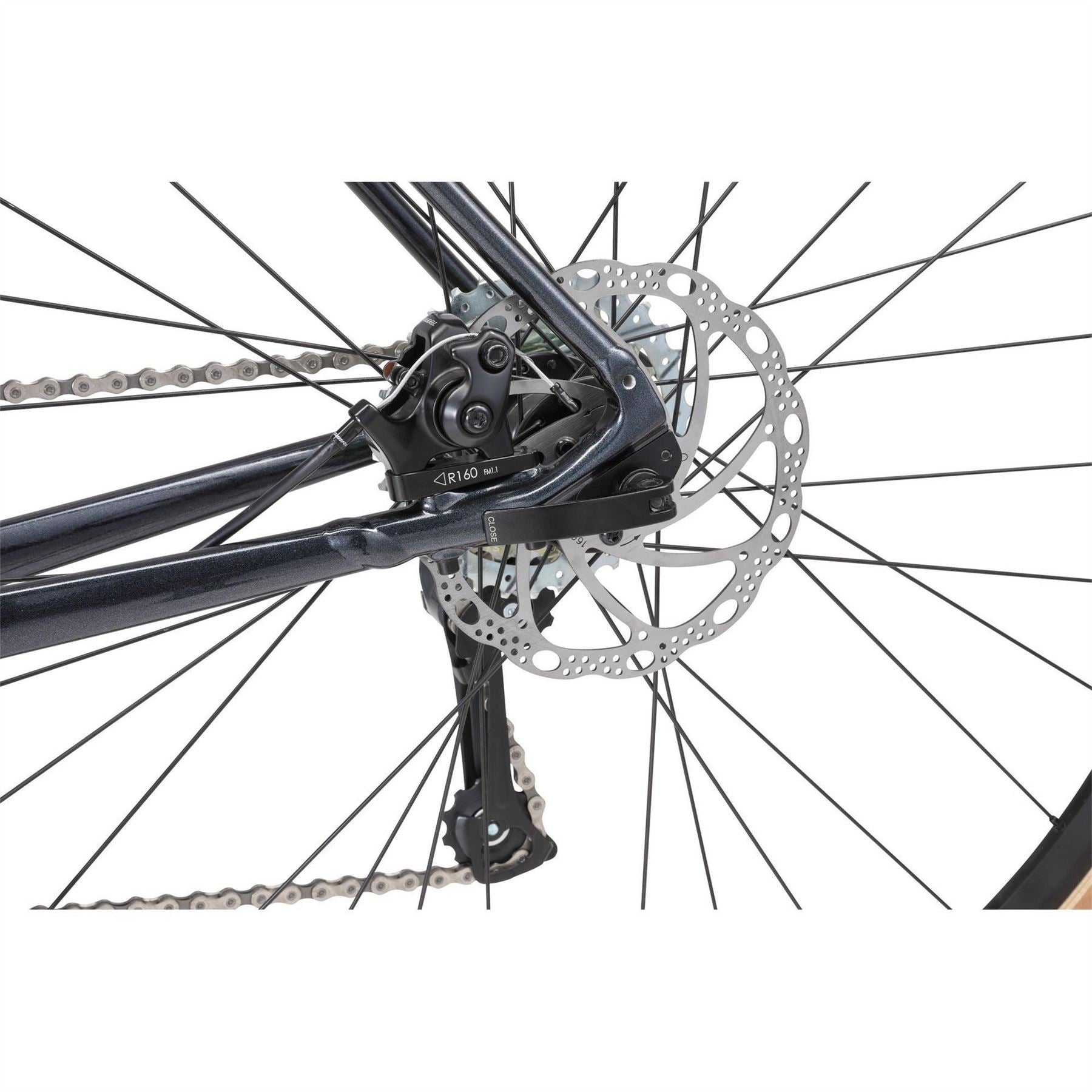

  • Brakes: Tektro MD-C510 flat mount, 160mm rotor mechanical disc
  • Brake Levers: Integrated w/ shifters
  • Saddle: WTB Volt
  • Seatpost: Promax alloy, 27.2MMx350MM

Bike Sizing

XS S M L XL XXL
Rider Height 5’0 - 5'4 / 137cm - 157cm 5'4 - 5'7 / 155cm - 162cm 5'7 - 5'10 / 162cm - 170cm 5'10 - 6'1 / 170cm - 183cm 6'1 - 6'4 / 183cm - 192cm 6'4 - 6'7 / 193cm - 203cm
