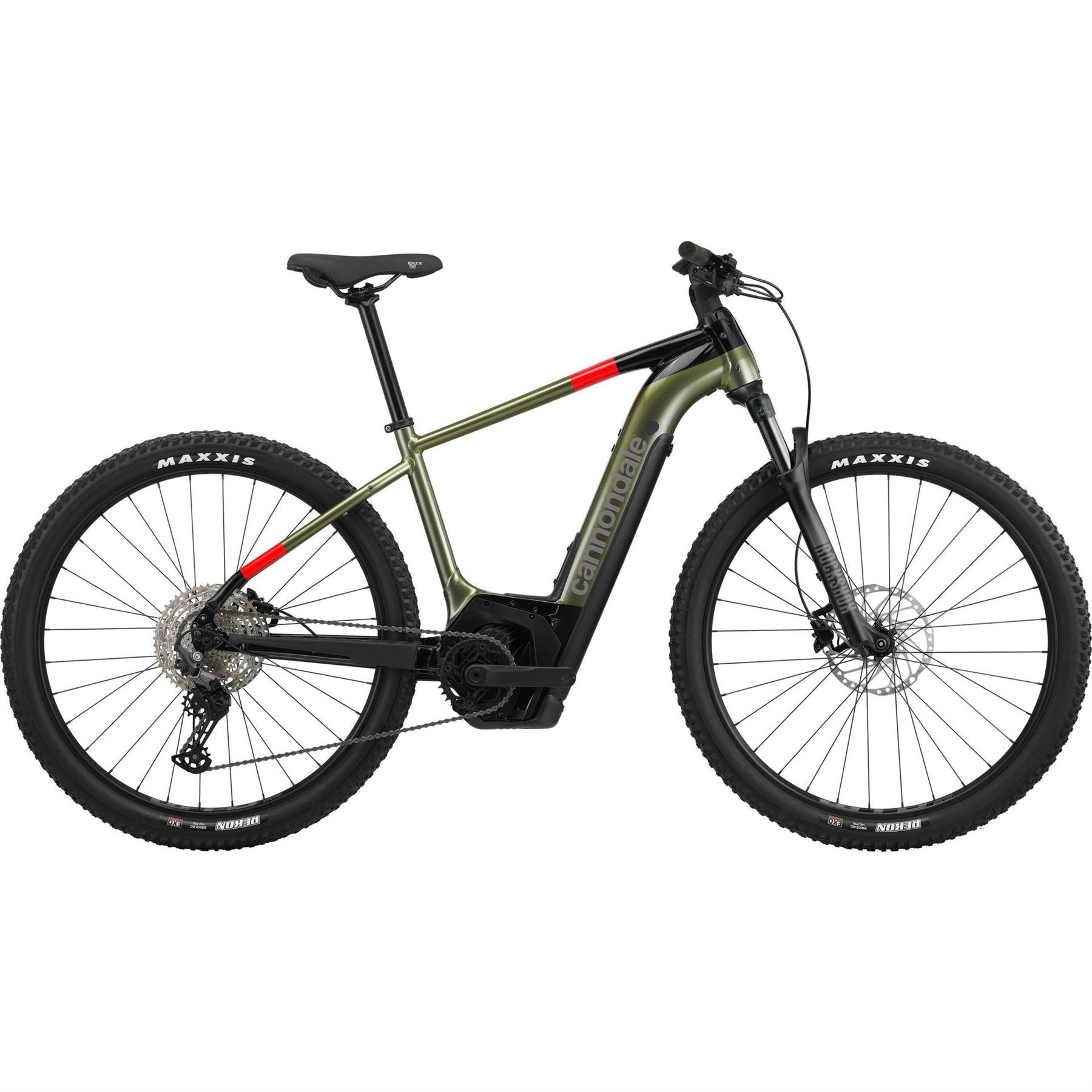

Cannondale Trail Neo 1 2025 Electric Mountain Bike

Cannondale Trail Neo 1 2025 Electric Mountain Bike

£2,600.00
£2,600.00 £4,300.00
Save 40% Sold out
Tax included.
Can only be shipped to the UK.
Out of stock
Size: M
Colour: Mantis

SKU: L1000000024465570001315390

Description

The Cannondale Trail Neo 1 is a capable electric hardtail mountain bike designed to help riders explore further and tackle trails with greater confidence. Built around Cannondale’s SmartForm C1 Alloy frame, it combines lightweight construction with durable trail-ready design. The integrated Bosch battery is positioned low in the frame to improve stability and handling, while internal cable routing and practical mounting points for racks, mudguards and a kickstand make it versatile enough for both off-road adventures and everyday riding.

Power comes from Bosch’s Performance Line CX motor paired with a large 750Wh PowerTube battery, delivering smooth and powerful assistance for climbing and long rides. A RockShox 35 Silver suspension fork with 100mm travel absorbs bumps and rough terrain, while Shimano Deore 12-speed gearing provides a wide range for efficient climbing and fast descents. Powerful Tektro four-piston hydraulic disc brakes offer confident stopping power, and Maxxis Rekon tyres mounted to WTB tubeless-ready rims deliver reliable traction and durability on the trail.

Key Features

  • SmartForm C1 Alloy e-MTB frame with integrated removable 750Wh battery
  • RockShox 35 Silver suspension fork with 100mm travel
  • Bosch Performance Line CX motor with SmartSystem integration
  • Shimano Deore 1x12 drivetrain with wide-range cassette
  • Tektro four-piston hydraulic disc brakes with 203mm rotors
  • WTB STX i30 tubeless-ready wheels with Maxxis Rekon 2.6 tyres

Specifications

Frameset

  • Frame: SmartForm C1 Alloy, removable 750Wh downtube battery, integrated front running light, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection, rack and fender mounts
  • Fork: RockShox 35 Silver, coil, 100mm travel, 15x110mm thru-axle, tapered steerer, 44mm offset
  • Headset: Integrated, 1-1/8 to 1.8, sealed angular contact bearings

Wheelset

  • Rims: WTB STX i30, 32h, tubeless ready
  • Front hub: Shimano MT400, 15x110mm thru-axle
  • Rear hub: Shimano MT510, 12x148mm thru-axle
  • Spokes: DT Swiss Champion 2.0

Tyres

  • Front tyre: Maxxis Rekon, EXO Protection, tubeless ready, 29x2.6 (M, L, XL) / 27.5x2.6 (S)
  • Rear tyre: Maxxis Rekon, EXO Protection, tubeless ready, 29x2.6 (M, L, XL) / 27.5x2.6 (S)

Drivetrain

  • Rear derailleur: Shimano Deore M6100, 12-speed
  • Shifters: Shimano Deore M6100, 12-speed
  • Crankset: FSA for Bosch G4
  • Cassette: Shimano Deore M6100, 10-51T
  • Chain: Shimano Deore M6100, 12-speed
  • Number of gears: 12

Brakes

  • Brake: Tektro M807 four-piston hydraulic disc brakes
  • Rotors: TRP, 203/203mm

Finishing Kit

  • Stem: Cannondale 2, 3D Forged 6061 Alloy, 35mm, 0°
  • Handlebar: Cannondale 2 Riser, 6061 Alloy, 35mm, 780mm
  • Grips: Fabric Funguy
  • Saddle: Selle Royal Vivo Active Ergo Reflective
  • Seatpost: Cannondale 4, 6061 Alloy, 31.6mm

E-System

  • Motor: Bosch Performance Line CX 250W
  • Battery: Bosch PowerTube 750Wh
  • Display: Bosch Kiox 300 with LED remote
  • Charger: Bosch 4A

Trail Neo Sizing

S M L XL
Rider Height (cm) 162 - 172 170 - 182 182 - 190 193 - 203
Rider Height (in) 5'4 - 5'8 5'7 - 6'0 6'0 - 6'3 6'4 - 6'8
